Caterpillar Engine Tools Cat Overhaul 3512 Page 141

Operation and Maintenance Manual
2591823
2591849
3-141
Engine Tools
Cylinder Head, Valves and Cam Followers

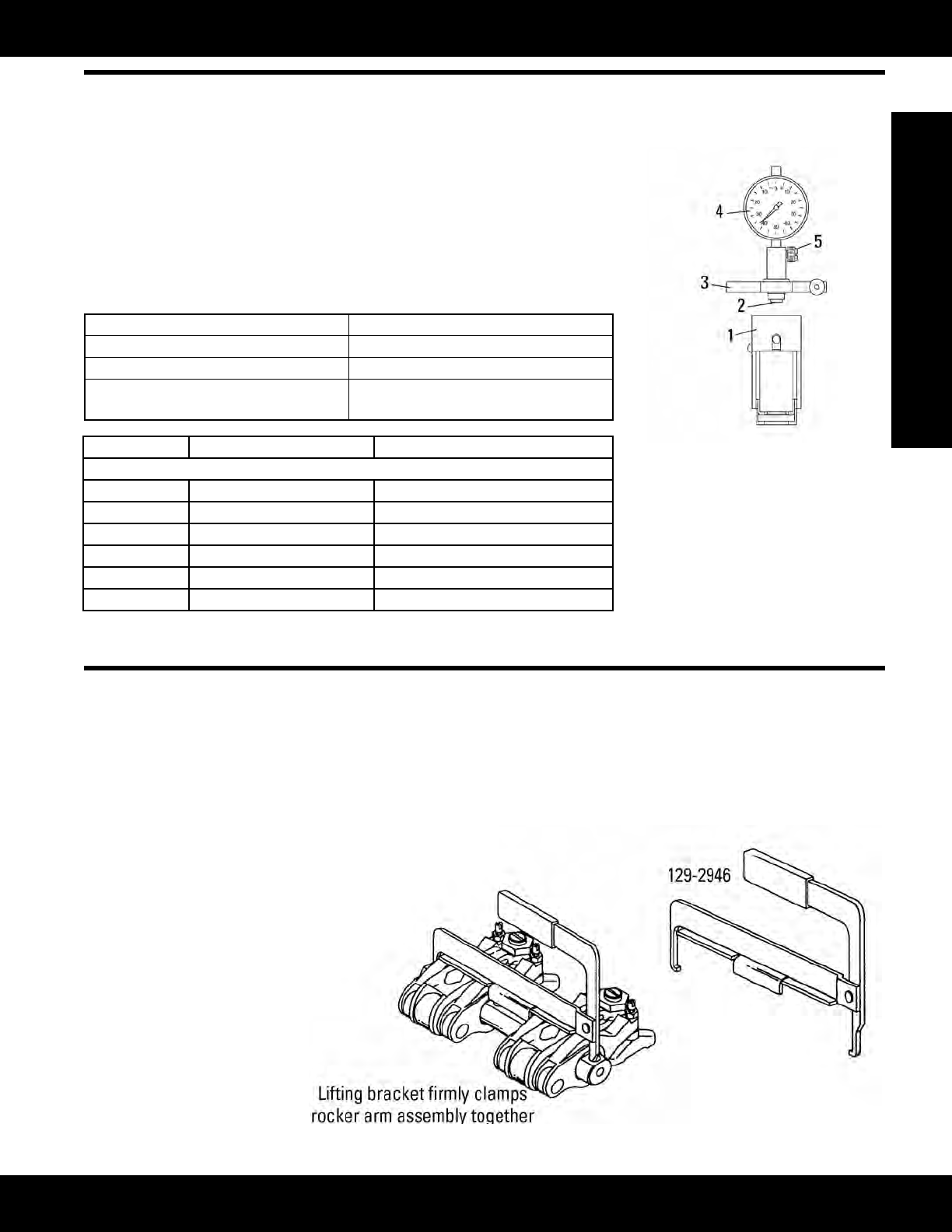

Valve Lash Setting Tool
Model: 3500 Engines
Warranty: Six Months
• Replacesdiscontinued4C-8241ValveLashSettingGauge
• Usedtoprovidevalvelashsettingson3500ASeriesdieselengines
• Dialindicatoreliminatesguessworkbymeasuringexactvalvegap(greatly
reducestimeneededtoaccuratelyadjustvalves)
• Baseassemblyhasaninnerandoutersleeve:innersleeveputstensionon
rockerarm;outersleeveputspressure,inoppositedirection,onvalvebridge
assembly;dialindicatormeasuresgaptodetermineexactvalvesetting
Reference
SEHS9261, Special Instruction
Indicator diameter 57 mm (2.25 in)
Graduations 0.025 mm (0.001 in)
Dial reading 0-50-0
Range 6.35mm(0.250in)total;2.54mm(0.100in)
perrevolution
Item Part Number Description
Assembled Valve Lash Setting Tool
1 125-2742 Base Assembly (for 3500)
2 6V-2057 Contact Point
3 125-2743 Collar Group
4 4C-8246 Indicator
5 9U-6272 Nylon Screw
Not shown 6V-2030 Extension
1 2
1
UsedforFIETSandAVMwithheavydutycoupling
2
Part of 6V-6042 Indicator Contact Point Group
Lifting Bracket Assemblies
Model: 3406E Engines and C11/13 Engines
Warranty: Six Months
• Usedtoliftrockerarmassemblyduringremovalandinstallation(keepstheassemblyaligned)
• Fingersofliftingbrackettthroughboltholesinrockerarmshaftandrmlyclampassemblytogether
• Usingtheliftingbracketgreatlydecreasesassemblytimebecausevalveandunitinjectorrockerarmsareheldincorrect
relationtooneanother(usingliftingbracketallowsthemechanictohaveafreehandduringassembly)
(Continued)
