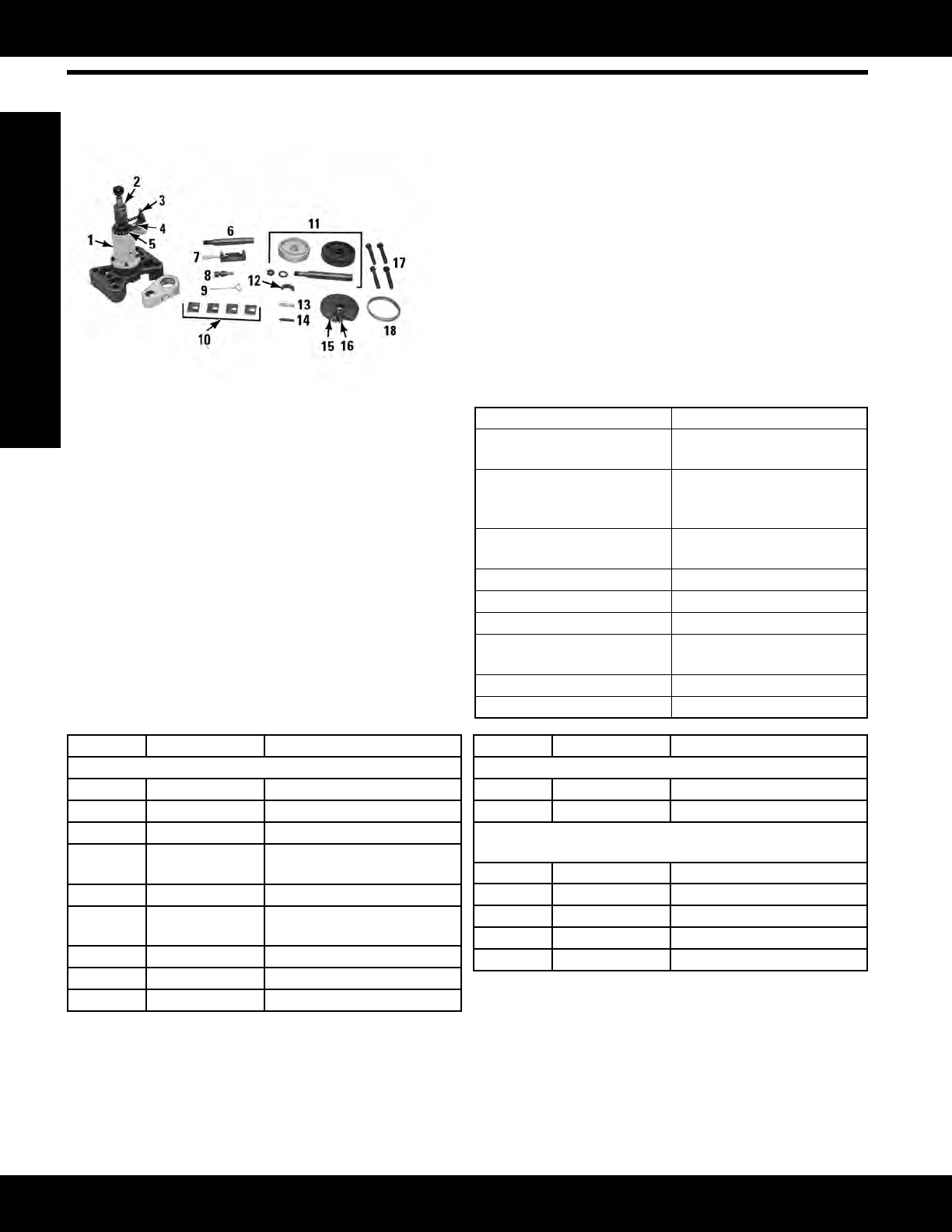

Caterpillar Engine Tools Cat Overhaul 3512 Page 82

Operation and Maintenance Manual
2589312
3-82
Engine Tools
Cylinder Block and Liners
Tools for Reconditioning Cylinder Block Counterbores
Model: Multiple Engine Models
Warranty: Six Months
Engineblockswhichdevelopcracksinthecylinderlinercoun-
terbore area can be repaired. The repair consists of machining
a new counterbore and installing a liner seat insert. The insert
is then machined to standard counterbore depth with the 5P-
4175 Counterboring Tool.
The 5P-4175 Counterboring Tool along with the basic tools
required for all engines are described below. Refer to the chart
for additional tools and the inserts which must be selected for
individualengines.
References
SMHS7600, Special Instruction
SMHS7585, Special Instruction, Use of 5P-4175 Counterboring
Tool
Other Special Instructions listed in chart
Item Description
3 Alsoincludes:DriveAssembly
(Part of 5P-1629)
7 Nolongeravailable-use
9U-7986 Base and Micrometer
Group
11 Installer Assembly (includes
parts listed below)
12 Depth Master Gauge
13 Cutter Assembly
14 Cutter Setting Gauge
15 Holder Group (includes parts
listed below)
17 Mounting Bolts
18 Liner Seat Insert
Item Part Number Description
Basic Tools Required for All Engines
1 5P-4175 Counterboring Tool Group
2 8H-3127 Bolt - Hex Socket Head
3 5P-1629 DriveGroup(Partof5P-4175)
3 5P-1627 SprocketDrive(Partof5P-
1629)
3 4B-9806 Screw
4 5P-1631 Chain Assembly (Part of 5P-
4175)
5 6V-2120 Sprocket (Part of 5P-4175)
6 5P-1657 Shaft
8 5P-1630 DriveAdapter
1
Item Part Number Description
Basic Tools Required for All Engines (Continued)
9 5P-1656 ToolRemoverHook
10 5P-1769 Washer (4)
Additional Tools Required for Individual Engines (Refer to
Chart for Part Numbers)
11 5F-9871 Nut
11 4M-6013 Washer
15 6V-4985 Holder Plate
15 6V-4984 Screw
16 5P-1626 Setscrew
1
Part of 1P-4000 Line Boring Tool Group
