3-40

Engine Tools

Cooling System

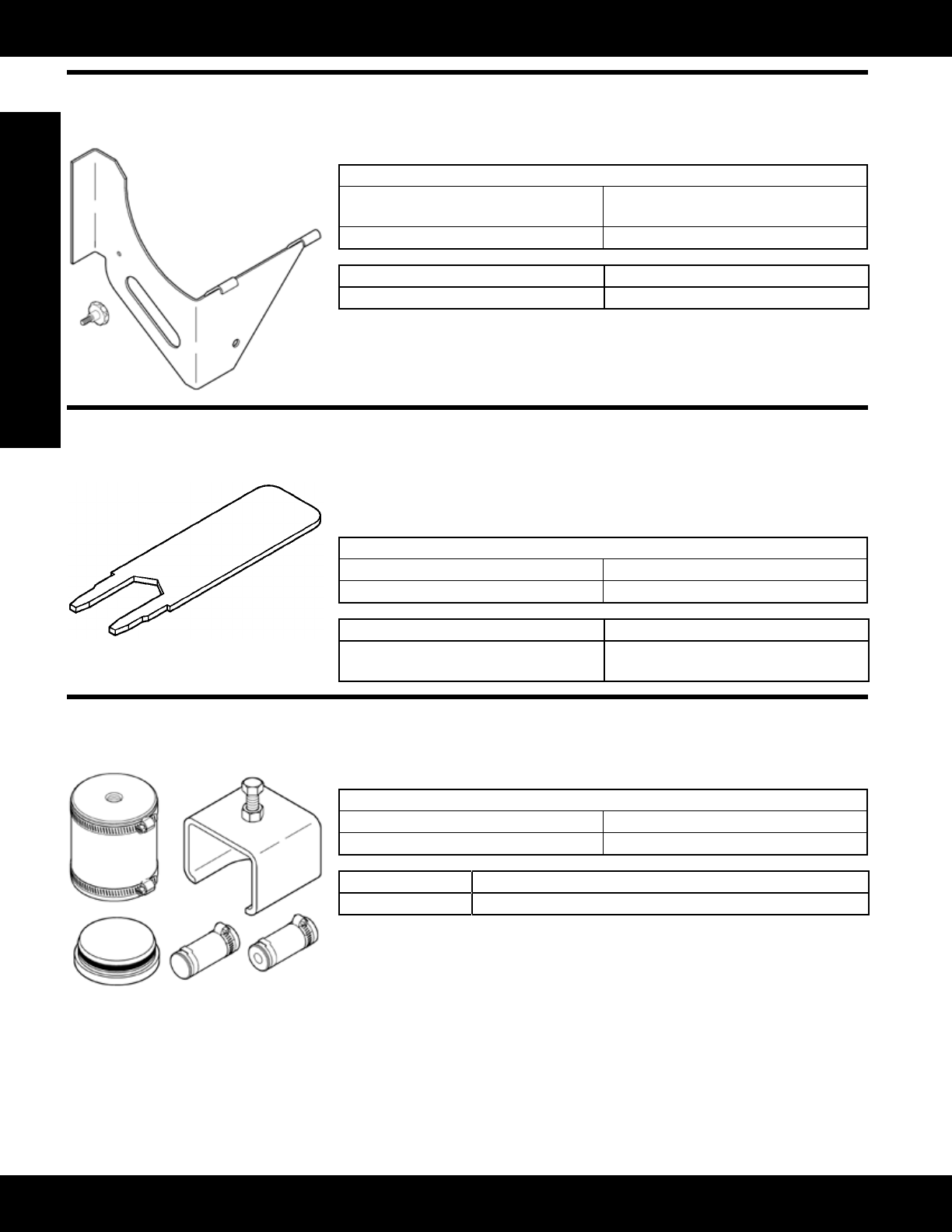

373-4792 Turbo Alignment Bracket

Model Usage: CT660 Truck

Warranty: Manufacturer’s

• Required to properly install and align the turbo assembly

Specications

Dimensions 355.6 x 279.4 x 304.8 mm (14.0 x 11.0 x 12.0

in)

Weight 2.3 kg (5.0 lb)

Part Number Description

373-7492 Turbo Alignment Bracket

373-4724 Air Compressor Coolant Line Release Tool

Model Usage: CT660 Truck

Warranty: Manufacturer’s

• Used to manually install injector into cylinder head

• Releasesthelockingmechanismtoallowtheremovalofthecoolantlineonthe

air compressor

Specications

Dimensions 3 x 1 x 0.25 in

Weight 0.23 kg (0.50 lbs)

Part Number Description

373-4724 Air Compressor Coolant Line Release

Tool

373-4793 Charge Air Cooler Test Group

Model Usage: CT660 Truck

Warranty: Manufacturer’s

• Used to perform diagnostics on the charge air cooler (intercooler).

Specications

Dimensions 177.8 x 134.6 x 134.6 mm (7.0 x 5.3 x 5.3 in)

Weight 2.56 kg (5.65 lb)

Part No. Description

373-4793 Charge Air Cooler Test Group
