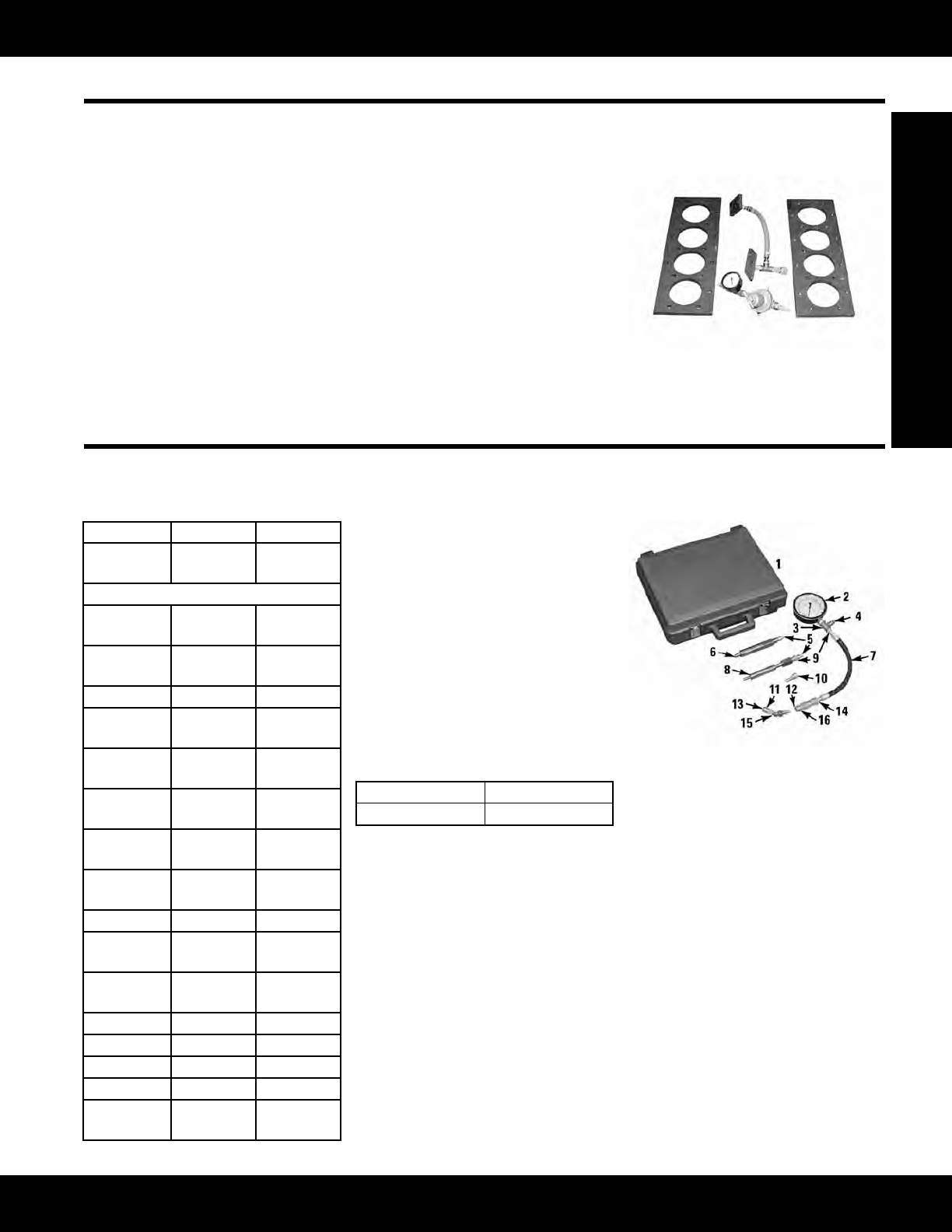

Engine Tools
Cylinder Block and Liners
Cylinder Block and Liners
FT1855 Block Pressure Test Group
Model: 1100, 3100, 3208
Warranty: None
• Used to check porosity of cylinder block in rebuilt engines (Engine blocks often
become pitted on outer wall of cylinder due to improper cooling system main-
tenance.Ifpittingbecomessevereandcylindersareboredoversizewhenthe
engineisrebuilt,thereisapossibilitythatthecylinderwallcanhaveporosity
notnoticedbyvisualinspectionalone.)
Application Procedure
• Aspartofthetestprocess,puttheblockontheoorwiththeywheelhousing
end on supporting blocks. Be sure all core and drain plugs are in place.
• Plug the oil cooler outlet
• Install the plate on each cylinder bank
• Fill the cylinder banks with water through the front water passages
• Install the small plates, attach the air pressure regulator, and introduce 100 to
310 kPa (15 to 30 psi) air pressure into the block (if porosity is present, water will
either seep or leak into the bores)
9U-6274 Compression Test Kit
Model: 3046, 3054, 3056, 3064, and 3066 Engines
Warranty: Six Months
• Used to obtain compression pres-
sure for comparison with other
cylinders
• Gauge holds reading until released
bybleed-offvalve
• Flexiblehoseprovideseasyviewing
angle of pressure gauge
• Air connectors also used to put
shop air into combustion chamber
whilereplacingvalvesprings
• Dual scales on gauge — psi and
kPa
• Pressure range: 0 to 7000 kPa (0 to
1000 psi)
Item Description
Not Shown NEEG2538 Decal
Item Part No. Description
-- 9U-6274 Compres-
sion Test Kit
Service/Repair Parts
1.0 9U-6279 Carrying
Case
2.0 9U-6277 Pressure
Gauge
3.0 9U-6389 Tee Fitting
4.0 9U-6387 Bleed
Valve
1
5.0 9U-6275 Quick Cou-
pler
6.0 9U-6280 Air Connec-
tor
7.0 9U-6384 Hose As-
sembly
8.0 9U-6145 Air Connec-
tor
9.0 9U-6390 Bushing
10.0 9U-6276 Quick Cou-
pler
11.0 9U-6391 Quick Cou-
pler
12.0 5C-0249 Plug Cap
13.0 9U-6394 Plug Cap
14.0 9U-6393 CheckValve
15.0 7D-2746 Elbow
16.0 9U-6392 Quick Cou-
pler
(Continued)
