Engine Tools

Air Induction

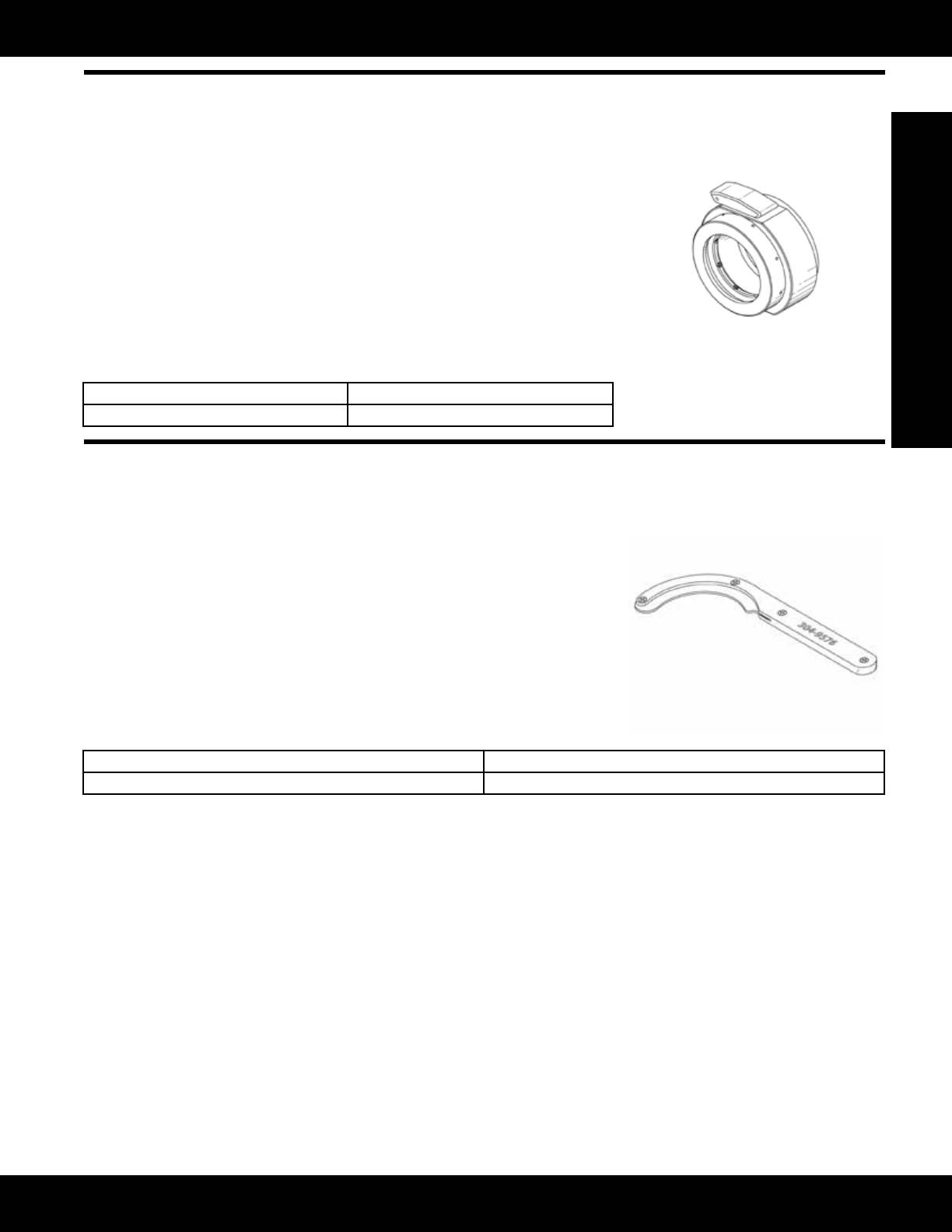

304-9575 Bellows Tool Assembly

Essential Tool

C175-16 Generator Set Engine

Warranty: Six Months

• Usedtoremoveandinstallturbochargerexhaustbellows

• Fitsoverbellowstomaintainpropershapeandhelppreventdeformingofinlet

and outlet

• Coversandprotectsbellowsduringdisassemblyandassembly

• Two-piecedesignwithhingeandlatchallowquickinstallationandremoval

• 306-7948 Inner Ring Segments (four per tool) and 2N-2658 Socket Head Screw

(16pertool)areservicedseparately

• Service/RepairPart:306-7648Ring

Reference

RENR7466,ServiceManual,C175-16GeneratorSetEngine,DisassemblyandAssem-

bly

Part Number Description

304-9575 Bellows Tool Assembly

304-9576 Feeler Gauge Assembly

Essential Tool

Model: C175-16 Generator Set Engine

Warranty: Six Months

• Used to ensure corrugations in exhaust manifold bellows are properly aligned

• Bellows corrugations must be checked when exhaust manifold is installed on

engine and turbocharger

• Properlyshapedandalignedcorrugationswillextendbellowsservicelife

• Heavy-duty,spring-steelfeelergaugewithsteelhandleisshapedtoreachall

sides of bellows

• Toolisblackoxidecoatedtopreventcorrosion

Reference

RENR7466, C175-16 Generator Set Engine, Disassembly and Assembly

Part Number Description

304-9576 Feeler Gauge Assembly
