Caterpillar Engine Tools Cat Overhaul 3512 Page 308

Operation and Maintenance Manual

Page of 420

/ 420

2696571

2597930

2597949

3-308

Engine Tools

Fuel System Repair and Adjust

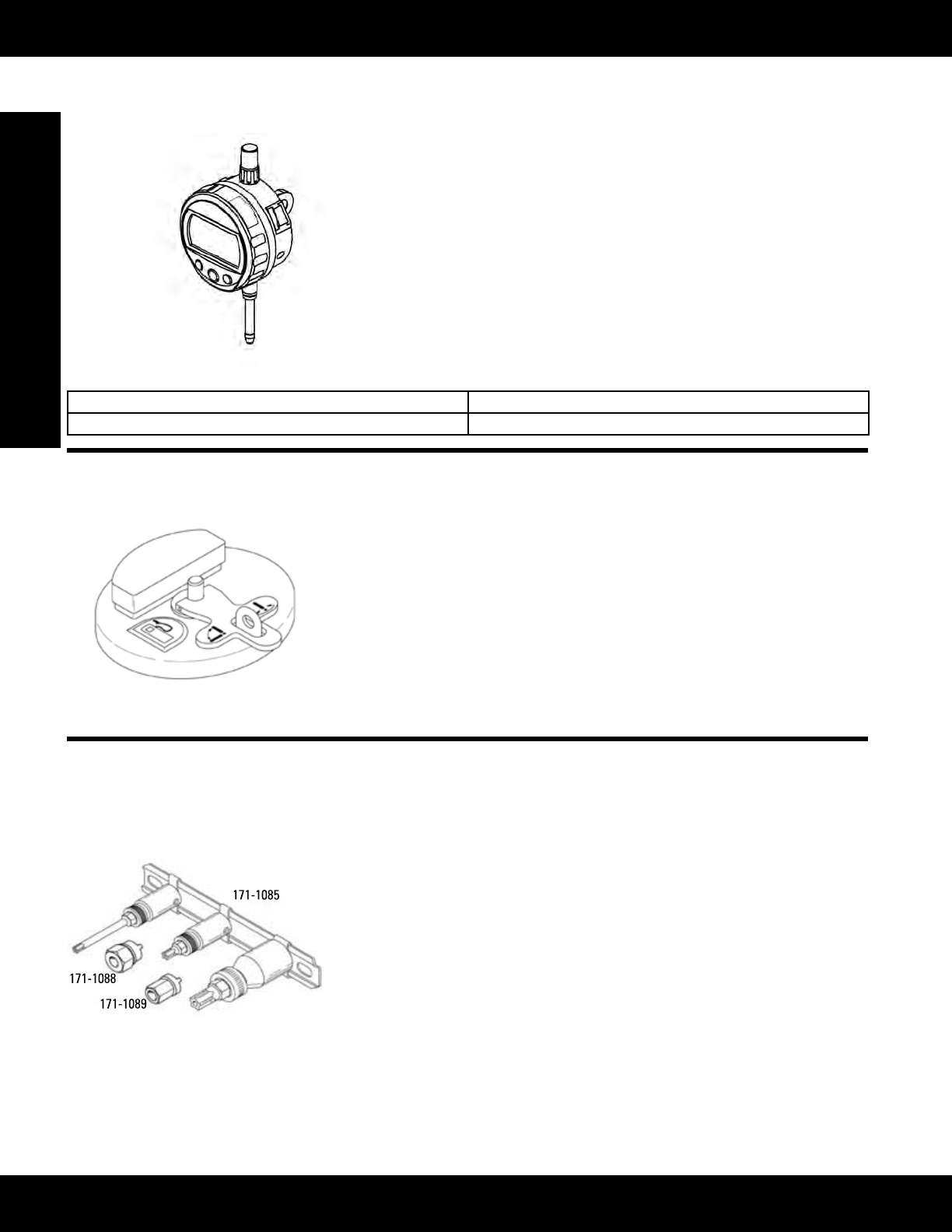

369-2607 Digital Dial Indicator (Continued)

Model Usage: 3116, 994

Warranty: Six Months

Part Number Description

369-2607 Digital Indicator

FT2650 Vacuum Fuel Cap

Model: 525, 527, and 545 Skidders

Warranty: None

• Used to minimize fuel loss when fuel system must be disassembled

• Specialvacuumcapassemblycanbeinstalledinplaceoffuelllercap

• Applying air pressure to 5P-0306 Vacuum Transducer produces a continuous

vacuumintank

• With 3 to 5 kg/cm² (50 psi) air pressure applied, transducer uses 4.65 C.F.M. of

compressedairandpulls8.75C.F.M.ofvacuumowat0kg/cm²(0psi)

• Maximum of 406 mm (16 in) Hg is pulled at 5.6 kg/cm² (80 psi) or 254 mm (10 in)

Hg at 3 to 5 kg/cm 2 (50 psi)

171-1085 Bolt Remover Kit, 171-1088 Torque Screw Locknut Wrench, 171-1089 Idle Adjustment Locknut

Wrench

Essential Tool

Model: 3054 and 3056 Engines with Stanadyne Pumps

Warranty: Six Months

171-1085BoltRemoverKit

• Replacesdiscontinued154-7151BoltRemoverKit

• UsedtoremoveandinstalltamperresistantboltsonStanadynefuelinjection

pump and aneroid shield

• Usedwith1/4and3/8inchsquaredriveratchets

• Used on 5YS, 7MS, 2PW, 3GW serial number engines

• Includes longer 15IPR Torx bit for adjusting torque and idle screw

171-1088 Torque Screw Locknut Wrench

• Used to loosen and tighten the torque screw locknut

• Used with 1/2 inch open end wrench and 1 1/2 inch long 15IPR Torx bit

171-1089 Idle Adjustment Locknut Wrench

• Used to loosen and tighten the idle adjustment locknut

• Usedwithopenendwrenchandscrewdriver

(Continued)
