Engine Tools

Engine Lifting and Positioning

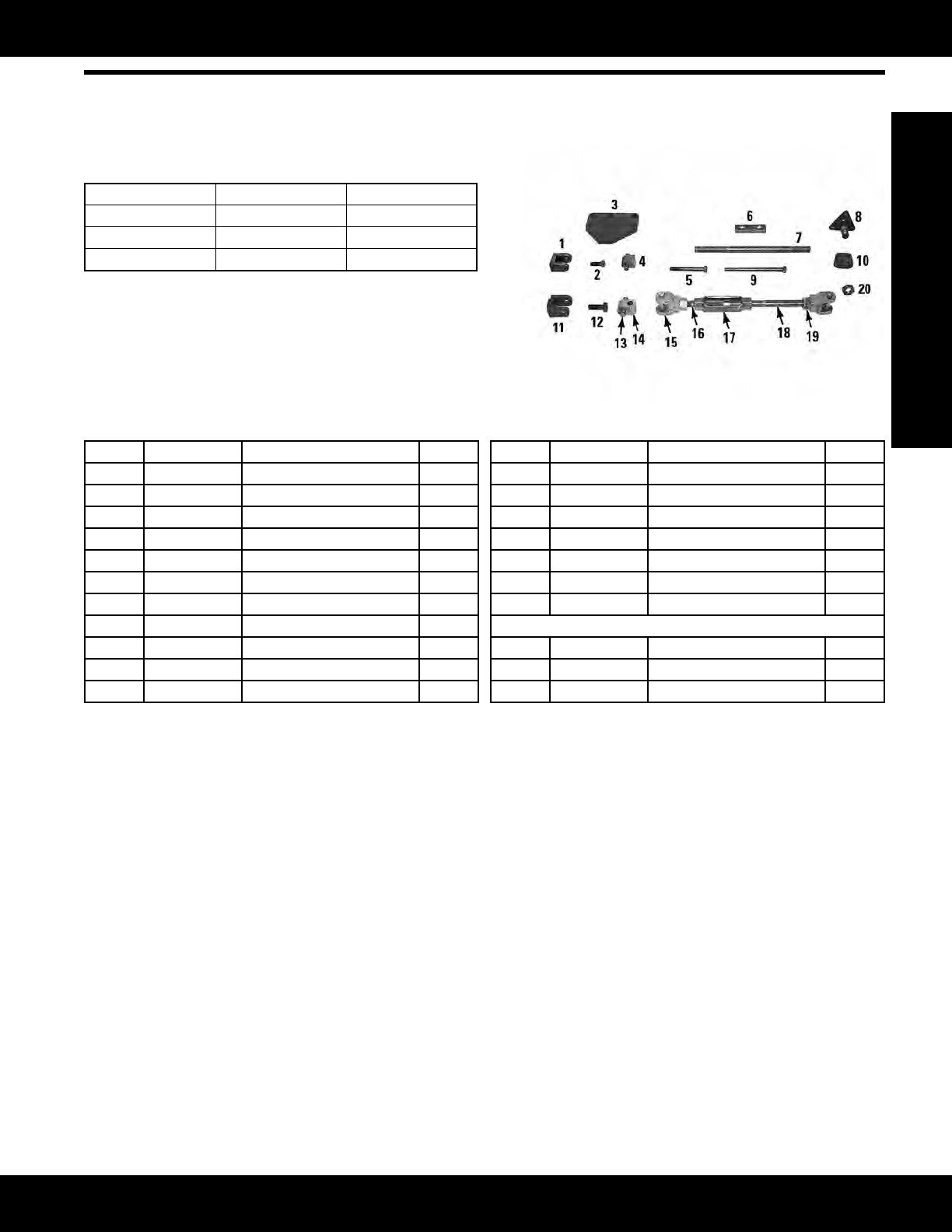

8F-2550 Engine Tilting Group

Model: D364, D375, D379, G379, D386, D397, D398, G398, D399, G399

Warranty: Six Months

• Usedtoremoveandinstallcrankshafts;refertocharts

(many parts are part of 8F-2250 Engine Tilting Group)

Item Description Qty.

6 Spacer

7 Upper Stud 4

17 Turn Buckle 4

Item Part Number Description Qty.

1 8F-4228 Hinge Yoke 4

2 0L-1178

Bolt 4

3 8F-4235 Plate 2

4 8F-4233 Hinge Block 4

5 1D-4616 Hex Head Cap Screw Bolt 4

8 8F-4224 PivotBracketAssembly 4

9 8F-4225 Bolt 4

10 8F-4234 Upper Hinge Block 4

11 8F-4227 Hinge Yoke 4

12 5B-9385 Bolt 12

13 5F-9892

Coupling Pin (70 ton) 16

Item Part Number Description Qty.

14 8F-4239 Hinge Block 4

15 8F-4226 Yoke 8

16 8F-4231 Lower Stud 4

18 8F-4230 Upper Stud 4

19 1B-4334

Nut 8

20 6F-7058 PivotBracketNut 4

-- 8F-2550 Engine Tilting Group --

Not shown

-- 3B-4618 Cotter Pin 32

-- 1B-4209 Nut - Full 2

-- 0S-0107 Washer 12

Discontinued, part of the 8F-2550 Engine Tilting Group
