3-152

Engine Tools

Cylinder Head, Valves and Cam Followers

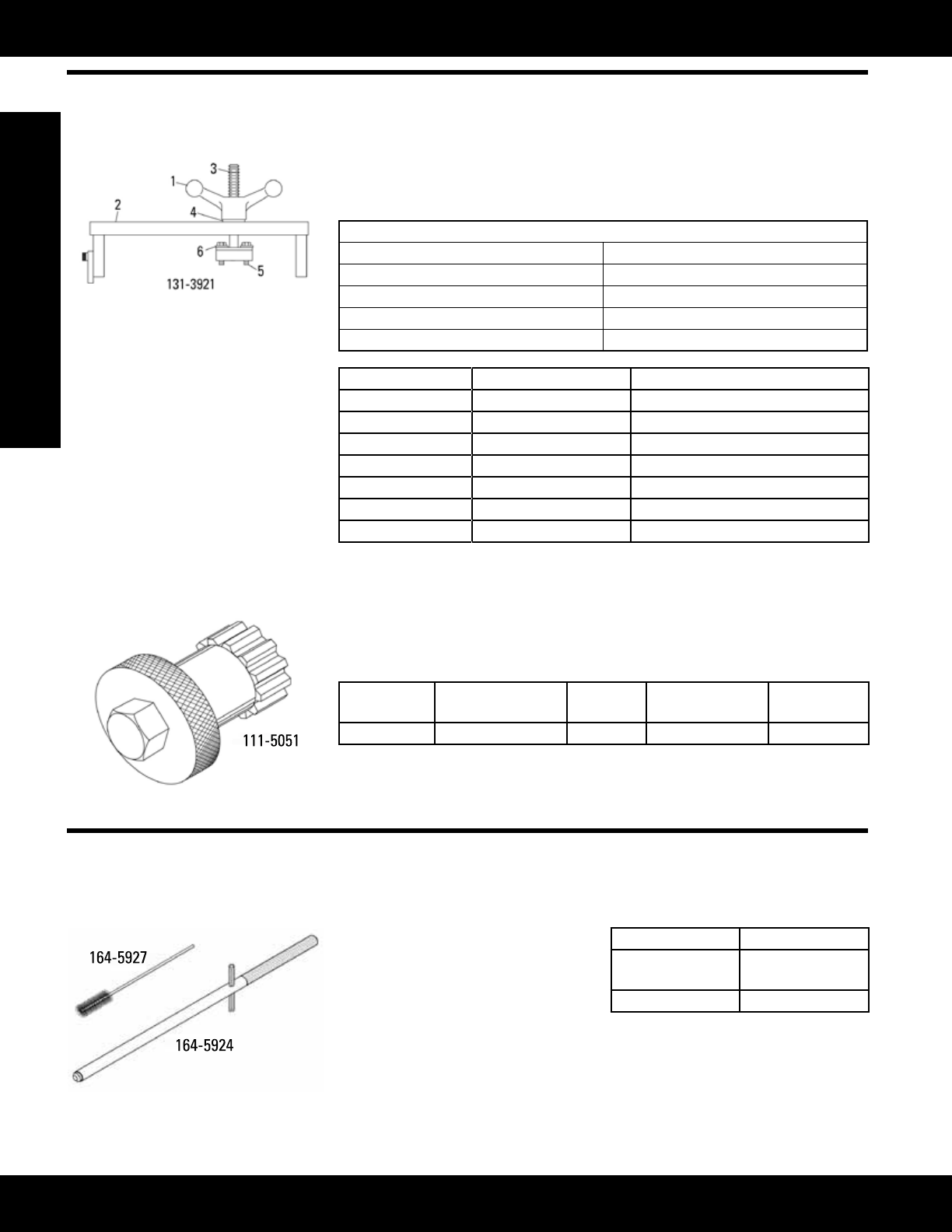

131-3921 Puller Group (HEUI)

Model: 3408 and 3412 HEUI Engines

Warranty: Six Months

• Usedtoeasilyremovecarbon-fouledinjectorsfromcylinderhead

• Pullerhaslarge,balledend,handleforeasierremoval

• Pullerbridgeassemblysitsoncylinderheadtopsurfaceandusesapivotingleg

extension to keep bridge from sliding off of cylinder head

131-3921 Injector Puller Group

Studassemblyoveralllength 118.5 mm (4.67 in)

Stud thread 3/8 - 16

Bolt size 1/4 - 20

Distance between bolt holes 29 mm (1.1 in)

Bridgeoveralllength 270 mm (10.7 in)

Item Part Number Description

1 131-8196 Handle

2 131-8197 Puller Bridge Assembly

3 131-8198 Puller Stud Assembly

4 093-0386 Puller Stud Assembly

5 0S-1616 Bolt

6 4B-4276 Flat Washer

-- 131-3921 Puller Group (HEUI)

111-5051 Injector Wrench (3408 and 3412 HEUI)

Model: 3408 and 3412 HEUI Engines

Warranty: Six Months

• Usedtoremoveandinstallstainlesssteelinjectorsleeves

• Used with 3/4 inch socket

• Splineontoolengagesinternalsplineinsleeve

Part Number Description Hex Size

Knurled Washer

Diameter Spline

111-5051 Injector Wrench 3/4 in 50.8 mm (2 in) 48 - tooth

164-5924 Injector Bore Gauge, 164-5927 Tube Brush

Essential Tool

Model: 3408 and 3412 HEUI Engines

Warranty: Six Months

• Used to clean and check clearance

ofinjectorsleevetiparea

• Proper cleaning of injector tip bore

is mandatory when changing HEUI

engine injectors

• Tools are included in 163-1575 HEUI

Injector Rework Kit

Reference

REHS0116, Special Instruction

Part Number Description

164-5924 Injector Bore

Gauge

164-5927 Tube Brush
