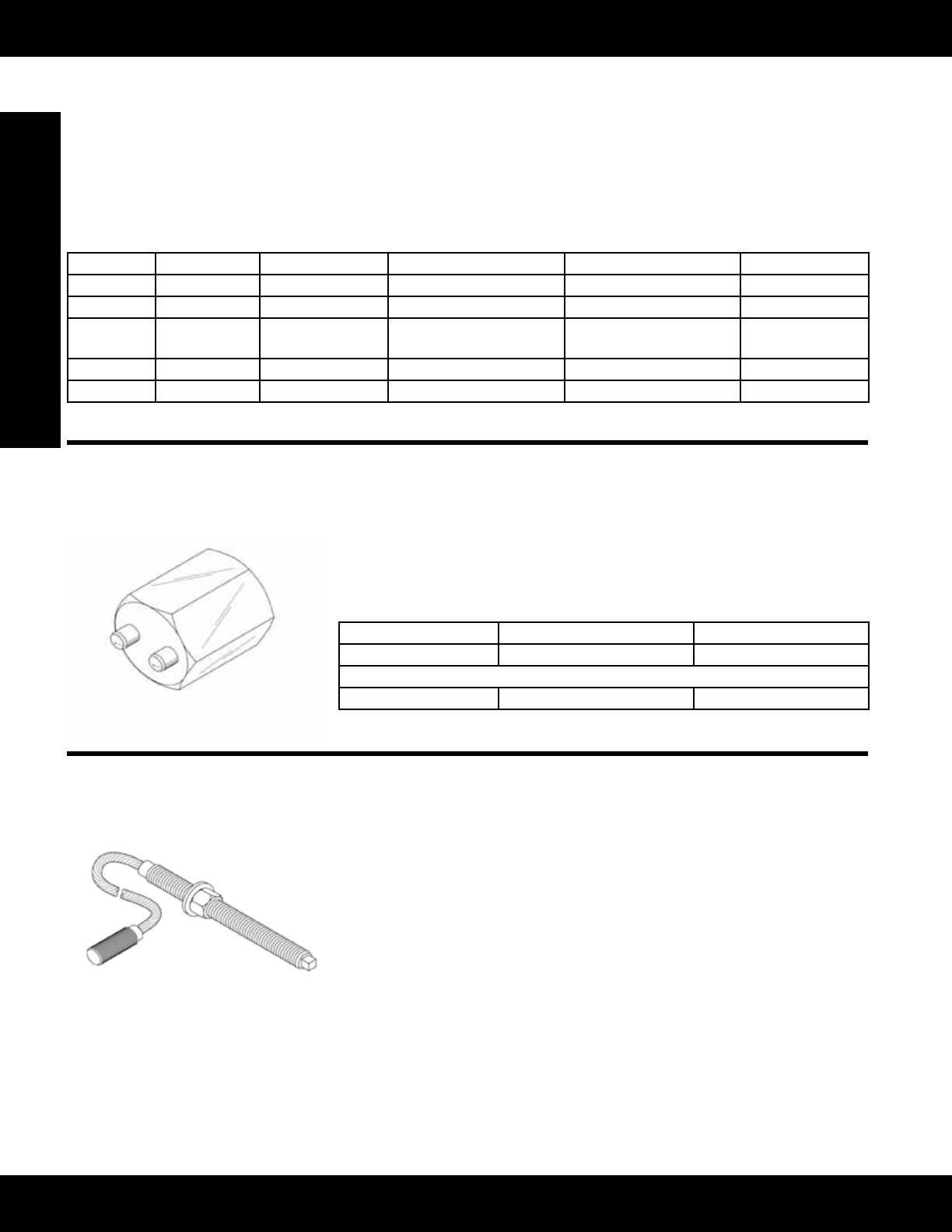

Caterpillar Engine Tools Cat Overhaul 3512 Page 68

Operation and Maintenance Manual
2588668
2588698
2588714
3-68
Engine Tools
Crankshaft, Main Bearings and Flywheel
Bearing Cap Tools (Continued)
Model: 1100, 3100, 3208, D342, D379, D398, D399, 3512, D397, G397, D375, G375, D364, 3500
Warranty: Six Months
• 9U-5023MainBearingWrenchusedtoremoveandinstallcrankshaftmainbear-
ingson3500FamilyEngines;tsboth12.7mm(1/2in)diameterboltand19.05
mm(3/4in)diametermainbearingbolts;canbeusedthroughcrankshaftaccess
openinginsidesofblockwithoutremovingoilpanwhenconnectedtoshort
extensionand3/4inchdrivetorquewrench;nolongertsboltson17.15cm(6
3/4 in) bore engines (use 8M-9379 Wrench instead)
Item Part Number Description Socket Size (left end) Socket Size (right end) Drive Size
1 8S-5131 Adapter -- -- --
2 1D-5343 Wrench -- -- --
3 9U-5023 Main Bearing
Wrench
1 5/16 in 1 1/8 in 3/4 in
4 7F-1709 Wrench
1
-- -- --
5 8M-9379 Wrench -- -- --
1
Discontinued
284-5266 Spanner Wrench Assembly
Essential Tool
Model: C175 Engine
Warranty: Six Months
• Usedtoremoveandinstallmainbearingcapstuds
• Usedwith11/4inchsocketor1/2inchsquaredrivewrench
Reference
RENR7466, C175 Engine Disassembly and Assembly Manual
Part Number Description Pin-to-Pin Center Distance
284-5266 Spanner Wrench Assembly 16 mm (0.63 in)
Includes:
9X-8979 Dowel Pin --
3500 Engine Main Bearing Cap Removal/Installation Tool
Model: All 3500 Engines
Warranty: Six Months
• Usedinpairstoremoveandinstallmainbearingcap(makesoperationmuch
easier)
• Allowsonemechanictoremoveorinstallabearingcapweighingapproximately
16 kg (35 lb)
• Flexiblewireropemakesiteasiertoinserttoolthroughenginesidecovers
Application Procedure
1. Loosen all 4 bolts for the main bearing cap.
2. Removethe2outerboltsformainbearingcapandreplacewithtooling.
3. Hand tighten smaller threaded end until tooling bottoms out in cylinder block.
4. Adjust nuts and washers on tooling until washers contact main bearing cap.
5. Removethe2remaininginnerboltsformainbearingcap.
6. Loosennutsevenlyinordertolowercap.Lowercaptotheend
of the bolt to gain access to main bearing.
7. Reversetoprocessforinstallation.
(Continued)
