Caterpillar Engine Tools Cat Overhaul 3512 Page 29

Operation and Maintenance Manual

Page of 420

/ 420

2587273

2643212

3-29

Engine Tools

Cooling System

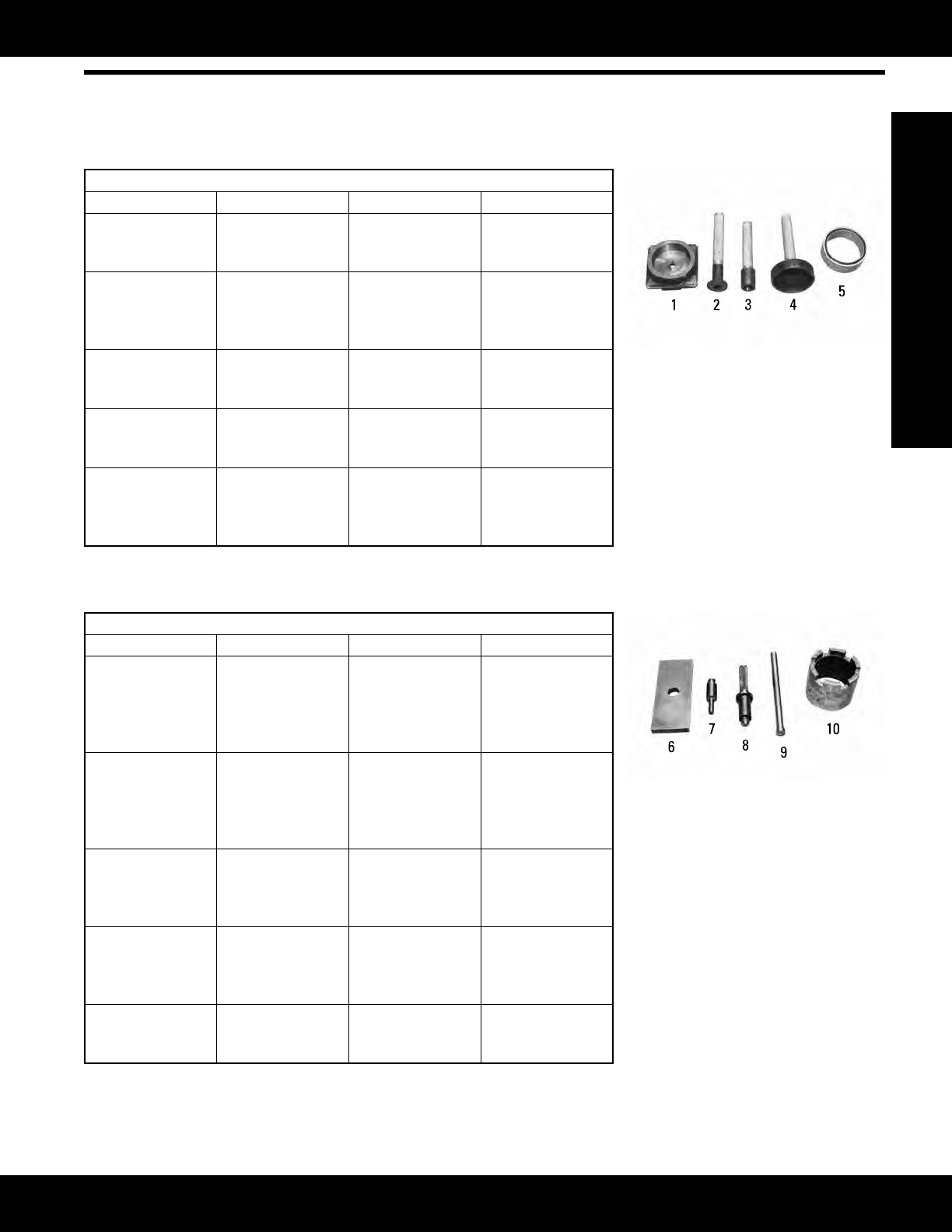

Fabricated Tools for Reconditioning and Testing 3208 Engine Water Pumps

Group 1

Model: 3208

Warranty: None

Group 1

Item Part Number Description Use

1 FT1700 Fixture Used to hold water

pump shaft during

pump assembly

2 FT1706 Installer Used with arbor

press to install

bearings into hous-

ing

3 FT1705 Installer Used with arbor

press to install seal

into housing

4 FT1704 Installer Used with arbor

press to install

impeller on shaft

5 FT1752 Test Fixture Used with V1-A

Vacuum Tester to

test water seal after

assembly

Fabricated Tools

Group 2

Item Part Number Description Use

6 FT1708 Fixture Used with FT1707

Ram Adapter and

hydraulic press to

removeimpeller

and seal from shaft

7 FT1707 Ram Adapter Used with FT1708

Fixture and hydrau-

licpresstoremove

impeller and seal

from shaft

8 FT1702 Driver Used with ham-

mertodriverear

bearing from pump

housing

9 FT1703 Driver Used with ham-

mertodrivefront

bearing from pump

housing

10 FT1701 Fixture Used to hold pump

housing during

disassembly
