Caterpillar Engine Tools Cat Overhaul 3512 Page 281

Operation and Maintenance Manual
2596783
2596802
2596823
3-281

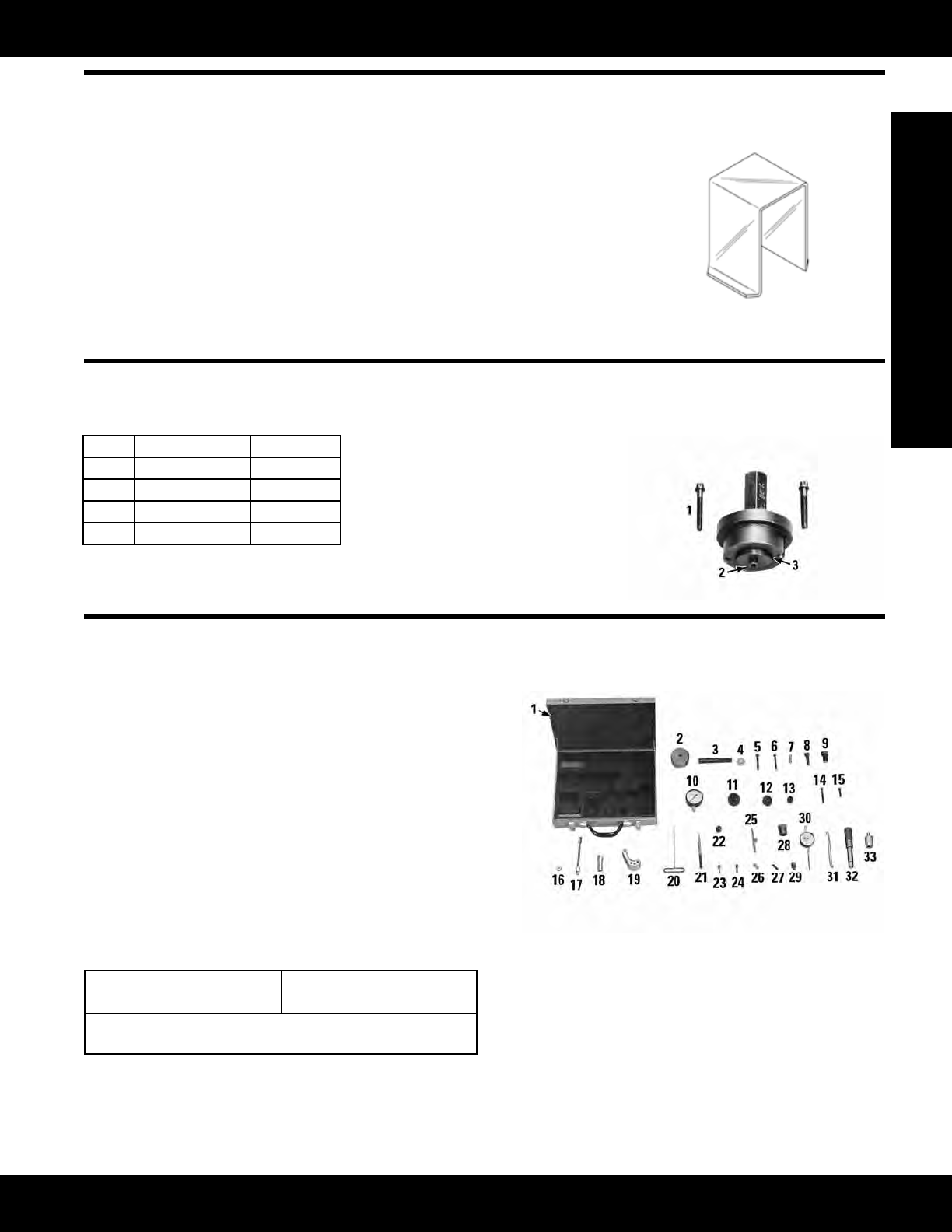

Engine Tools
Fuel System Repair and Adjust
FT2532 Oil Shield
Model: 3304 and 3306 Engines equipped with New Scroll Fuel Systems
Warranty: None
• Usedtocreateashieldtopreventoilleakingfromindicatorbracketwhen
checking fuel-to-air ratio with engine running
• Used with 6V-2014 Bracket Assembly, which is part of 6V-6070 Tool Group
• Oilshieldtsoverlevershaftmountingearsofindicatorbracket
• Can be easily made from aluminum or steel
• Attachestoindicatorbracketwith3S-6252RTVAdhesive/Sealant
• Afteroilshieldisinstalled,checkforfreemovementofindicatorlever
6V-4069 Body Group
Model: 3208
Warranty: Six Months
• Usedtoremovefuelpumpdrive
gearfromtaperondriveshaftbe-
foreremovingsleevemeteringfuel
system on 3208 Engines
• Replaces 5P-2371 Puller Plate
(providesmorepullingforcethan
5P-2371)
• Needed because of lack of space in
vehicle
Item Part Number Description
-- 6V-4069 Body Group
1 5L-4041 Bolt (2)
2 2H-0191 Bolt
3 6V-4088 Washer
5P-4203 Sleeve Metering Field Service Tool Group
Model: Cat
®
Engines
Warranty: Six Months
• Used for disassembly, assembly, testing and adjusting
SleeveMeteringFuelSystem;usedforfuelsetting
• Metrictools;valuesfortestingandadjustinggivenin
metric pressures
Asaresultofchangesandimprovementsintestandadjust
procedures,thediscontinued3P-1550SleeveMeteringField
ServiceToolGroupwasconvertedtothe5P-4203S.M.F.S.Tool
Group. Dealers should check the list to determine what tools
arerequiredtoconverttheirdiscontinued3P-1550Groupto
the 5P-4203 Group. Some parts of the discontinued 3P-1550
Group are no longer needed, but a number of items should be
retainedincaseoftheneedfordynamiccheckingofsleeve
shaftmovement.
Reference
SMHS7013, Special Instruction
Item Description
9 FT1632 Bolt¹
¹ FT1632 Bolt is made from 2H-3740 Bolt. Refer to following
article.
(Continued)
