Engine Tools

3600 Engine Tools

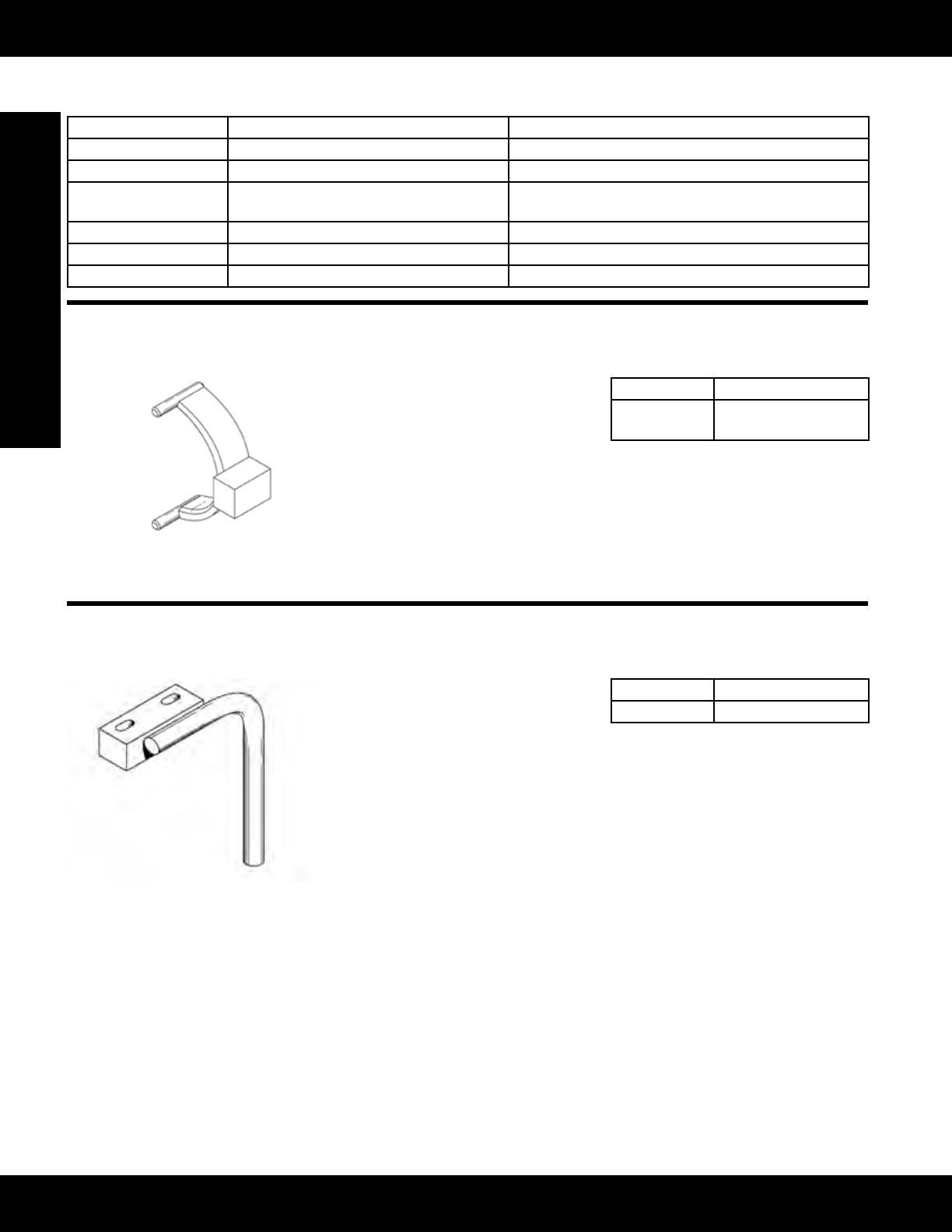

8T-3035 Lines Group (Continued)

Model: 3600 Engines

Item Part Number Description

-- 8T-3035 Lines Group

1 6D-7726 Hydraulic Hose (2)

2 3J-5390 Plug - NPTF (Ext Hex) 3/8 in-18 NPTF external to 1/8 in-27

NPTF internal

3 8T-5206 Manifold

4 1P-2375 CouplerAssemblyQuickConnective(Male)

5 1P-2376 CouplerAssemblyQuickConnective(Female)(2)

156-7159 Camshaft Separation Assembly

Model: 3618 Engines (serial numbers 2MW1-UP)

Warranty: Six Months

• Used to separate camshaft seg-

ments

• Replaces separating method which

used jacking screws (these holes

arenolongeravailableincurrent

camshafts)

• Used with 9X-8881 Bolt

• Bolt length: 57.2 mm (2.25 in)

• Bolt size: 5/8 - 11

Reference

RENR1333-01,ServiceManual

Part Number Description

156-7159 Camshaft Separation

Assembly

156-7160 Piston Support

Model: 3618 Engines

Warranty: Six Months

• Used to safely support piston and

connecting rod assembly while

replacing connecting rod bearings

• Made of lightweight aluminum for

easy installation

• Mounts in place of cooling jet with

existing bolts

Part Number Description

156-7160 Piston Support
