Caterpillar Engine Tools Cat Overhaul 3512 Page 413

Operation and Maintenance Manual
2601381
2669588
3-413
Engine Tools
3600 Engine Tools
179-1904 Stud Tensioner Tool Group (Continued)
Essential Tool
Model: 3618 Engines
Warranty: Six Months
Part Number Description
Tensioning Force at
Max. Pressure Maximum Stroke Overall Dimensions Weight
153-8487 Stud Tensioner
Cylinder Group
(Cylinder Head)
1100 kN at 150 mPa
(247,289 lb at 21,755 psi)
8 mm (0.31 in) 161.5 mm (6.36 in) high
x 143.0 mm (5.63 in)
diameter
9.6 kg (21.16 lb)
153-8488 Stud Tensioner Cyl-
inder Group (Main
Bearing)
2015 kN at 150 mPa
(452,990 lb at 21,755 psi)
10.0 mm (0.32 in) 182.2 mm (7.17 in) high x
188 mm (7.4 in) diameter
18.2 kg (40.12 lb)
179-1904 Stud Tensioner Tool
Group
-- -- -- --

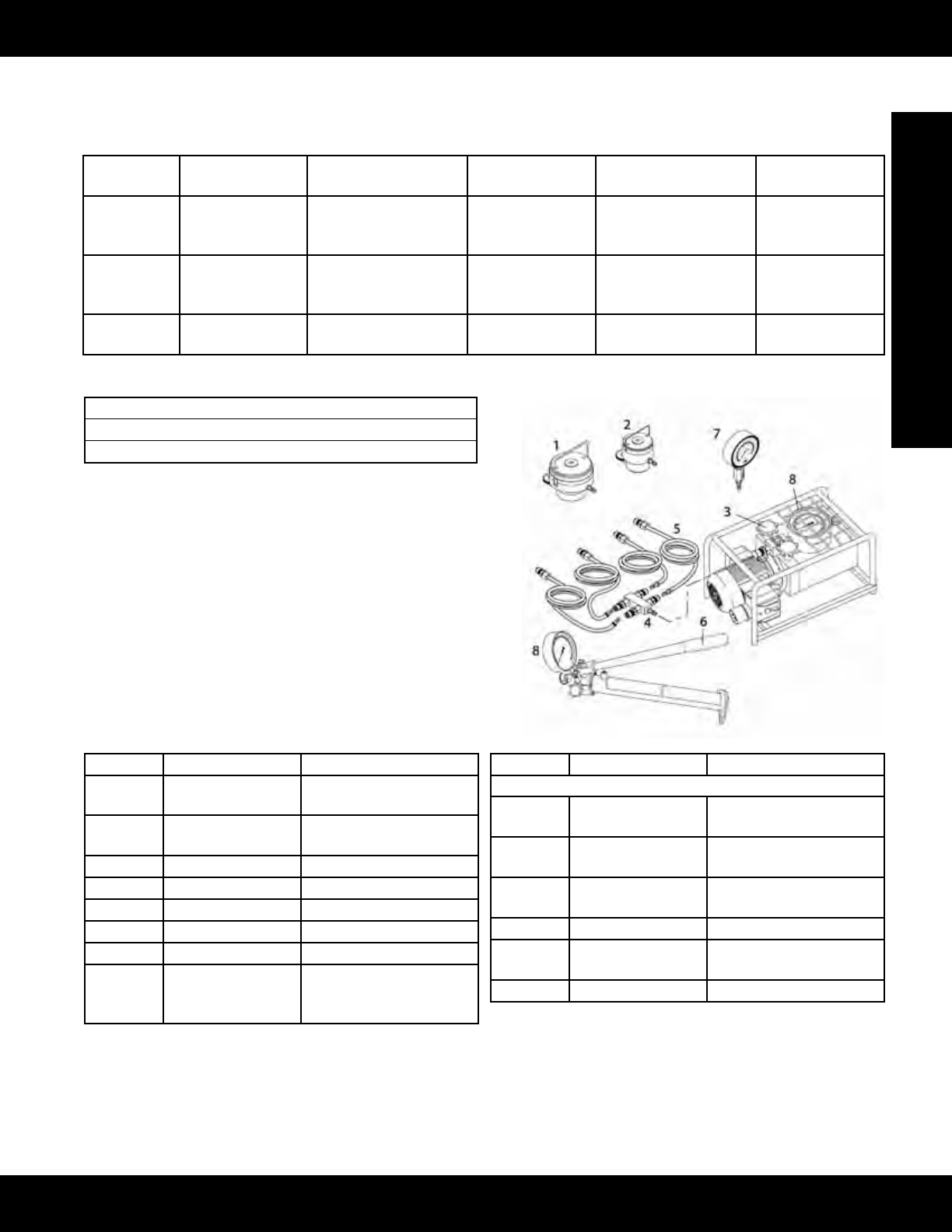

Stud Tensioner Tool Group
Parts Included (not shown):
SocketExtension(1/2indrive,127mm(5.0in)long)
SwivelHeadRatchet(1/2indrive)
Item Part Number Description
1 153-8488 Stud Tensioner Cylinder
Group (Main Bearing)
2 153-8487 Stud Tensioner Cylinder
Group (Cylinder Head)
3 156-7166 Hydraulic Pump, Electric
4 178-9313 Distribution Coupler
5 178-9312 Hose Assembly
6 156-7167 Hydraulic Pump, Manual
7 185-0683 Comparison Gauge
8 185-4436 PressureGauge(service
part for 227-6724, 227-8834,
1 and 191-5347 Pumps)
Item Part Number Description
Not shown
-- 178-9051 Bushing, M45 x 3 thread
(Cylinder Head)
-- 178-9058 Seal Kit (for 191-5322 Cylin-
der Head Cylinder Group)
-- 175-0184 Bushing, M56 x 4 thread
(Main Bearing)
-- 175-0185 Sleeve(MainBearing)
-- 175-0191 Seal Kit (for 191-5323 Main
Bearing Cylinder Group)
-- 178-9314 Pump Seal Kit
