Caterpillar Engine Tools Cat Overhaul 3512 Page 129

Operation and Maintenance Manual
2591281
2591309
3-129
Engine Tools
Cylinder Head, Valves and Cam Followers

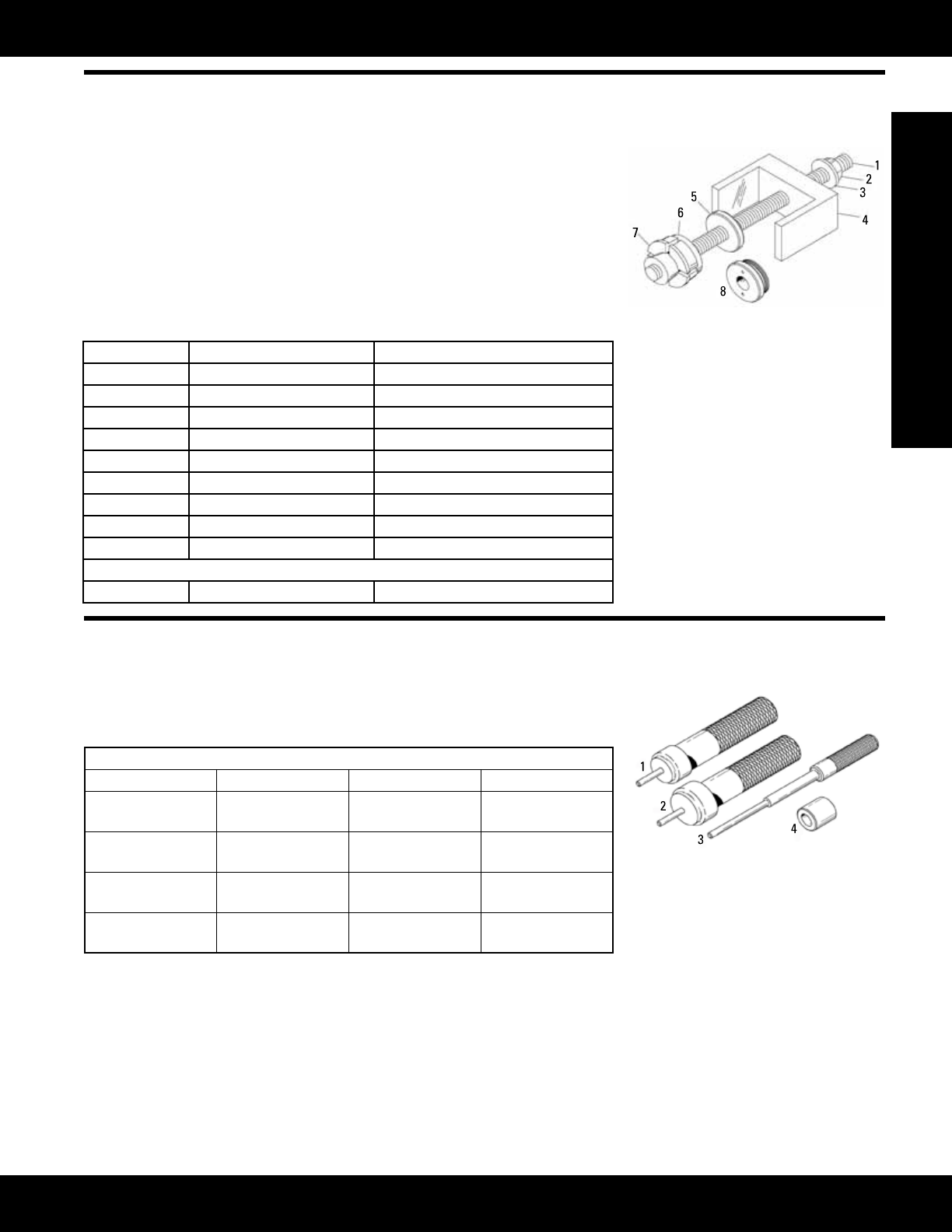

130-1449 Valve Seat Puller Group
Model: All 3600 and G3600 Engines
Warranty: Six Months
• Replacesdiscontinued9U-5099ValveSeatPullerGroup(9U-5099includes9U-
5096 Bridge Assembly)
• Usedtoremoveintakeandexhaustvalveseatinserts
• Usedwith6V-3160HydraulicCylinderforfaster,saferremoval
• A 9U-5098 Threaded Insert, part of 130-1449, can be used to adapt discontinued
6V-7047 Hydraulic Cylinder (130-1449 includes 9U-5096 Bridge Assembly)
• Overalllength:337mm(13.3in)
• Overallwidth:140mm(5.5in)
Reference
SENR3594, Disassembly and Assembly, 3612 and 3616 Engines
Item Part Number Description
1 128-6759 Stud and Cone Assembly
2 1A-1935 Nut
3 3K-5234 Washer (3)
4 9U-5096 Bridge Assembly
5 128-6761 Nut
6 9U-5097 Shoulder Screw
7 157-2882 Expander
8 9U-5098 Insert
-- 130-1449 ValveSeatPullerGroup
Not Shown
6 9U-5095 Plate
Valve Seat and Valve Guide Tooling
Model: 3034 Engines
Warranty: Six Months
• Usedtoremoveandinstallvalveguidesandvalveseats
Reference
SENR5013, 3034 Engine Disassembly and Assembly Manual
ValveSeatandValveGuideRemovalandInstallationTooling
Item Part Number Description Use
1 FT2714 IntakeValveSeat
Driver
Install 45 degree
intakevalveseat
2 FT2715 ExhaustValveSeat
Driver
Install 45 degree
exhaustvalveseat
3 FT2716 ValveGuideDriver Removeandinstall
valveguide
4 FT2717 ValveGuideStop
Collar
Installvalveguide
to correct depth
