Caterpillar Engine Tools Cat Overhaul 3512 Page 158

Operation and Maintenance Manual
2592578
2592597
2592612
2592627
3-158

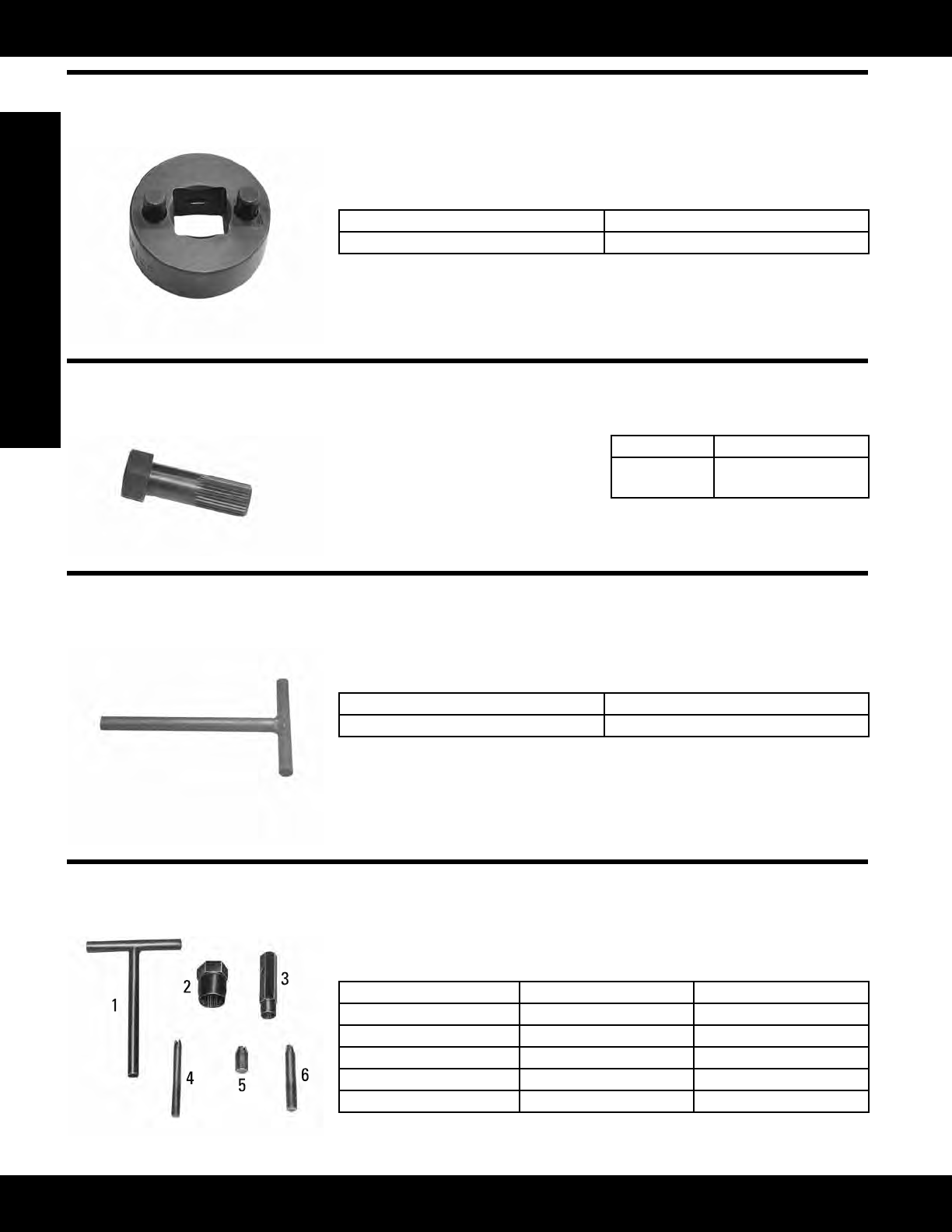

Engine Tools
Cylinder Head, Valves and Cam Followers
5P-0125 Precombustion Chamber Wrench
Model: 3204, D3, 910, 931
Warranty: Six Months
Model: 3204, D3, 910, 931
• Usedtoremoveandinstallprecombustionchamberson3204EngineinD3Trac-
tors, 910 Wheel Loaders, and 931 Track Loaders
Part Number Description
5P-0125 Precombustion Chamber Wrench
5P-0961 Fuel Valve Adapter Wrench
Model: 3400
Warranty: Six Months
• Usedforremovalandinstallationof
directinjectionfuelvalveadapters
on 3400 Series Engines
Part Number Description
5P-0961 FuelValveAdapter
Wrench
5S-0276 Glow Plug Wrench
Model: Multiple Engine Models
Warranty: Six Months
• Usedtoremoveandinstallglowplugswith9.525mm(3/8in)hexonD4E,D6D,
D6H, 637D, 977L
Part Number Description
5S-0276 Glow Plug Wrench
Glow Plug Tools
Model: Most Cat
®
Engines
Warranty: Six Months
• Wrenchesandguidescrewsneededforinstallationandremovalofglowplugs
with 7.93 mm (5/16 in) hex on earlier engines
Item Part Number Description
1.0 1H-5656 Wrench
2.0 8S-2243 Wrench
3.0 9S-2573 Socket
5.0 9F-4571 Guide Screw
6.0 5H-7446 Guide Screw
