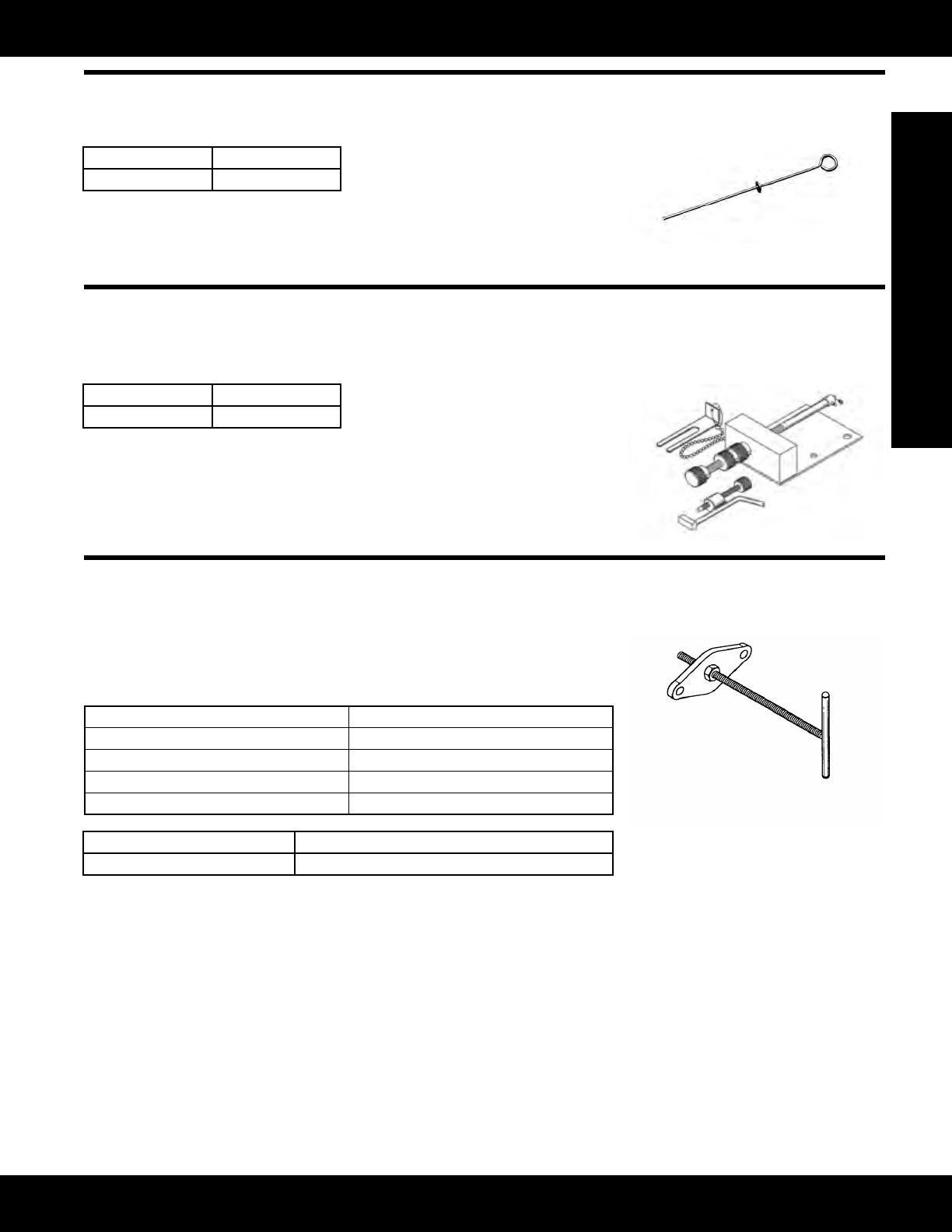

3-277

Engine Tools

Fuel System Repair and Adjust

6V-7942 Hook

Model: Cat

Engines

Warranty: Six Months

• Used to pull rack against rack cen-

teringpinonengineswithnegative

rack settings

• Necessary because on some of

theseengines,overfuelingspring

maynotmoverackagainstcenter-

ing pin

Part Number Description

6V-7942 Hook

158-8665 Rack Set Tool

Essential Tool

Model: 3034 Engines

Warranty: Six Months

• Used to adjust maximum fuel setting

if timing case or fuel pump linkage

areremovedorrepaired

Reference

SENR5013, Disassembly and Assembly of

3034 Engine

Part Number Description

158-8665 Rack Set Tool

9U-5296 Rack Positioning Assembly

Model: 3204, 3300, and 3406 Series NSFS (Non-PEEC) Engines

Warranty: Six Months

• Used to set injection pump rack while pump is being tested on test bench

• Used with FITB, FIETS, and AVM test benches

Reference

NEHS0639, Tool Operating Manual

Overalllength 171.4 mm (6.75 in)

Thread size 1/4 - 28

Bolt hole diameter 7.5 mm (0.30 in)

Distance between holes 63.6 mm (2.50 in)

Servicepart 6V-8187 Nut

Part Number Description

9U-5296 Rack Positioning Assembly

Non-PEEC, 3406B and 3406C Rack Adjustment
