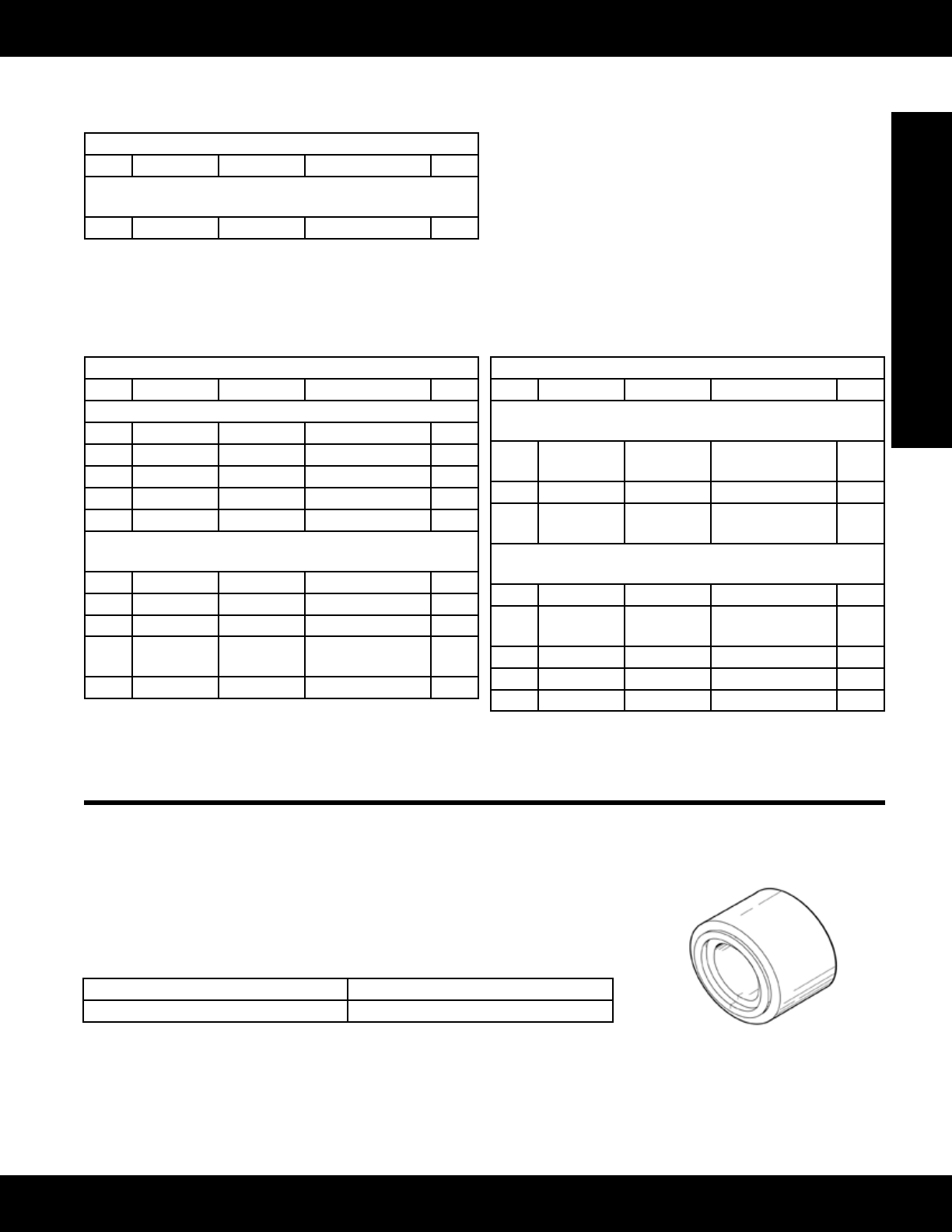

Caterpillar Engine Tools Cat Overhaul 3512 Page 55

Operation and Maintenance Manual
2588079
2643832
2588091
3-55
Engine Tools
Crankshaft, Main Bearings and Flywheel
Crankshaft Seal and Wear Sleeve Installation Tools (Silicone and Hydrodynamic) (Continued)
Model: 1100, 3100, 3200, 3300, 3400
Warranty: Six Months
CURRENT ENGINES
Item Location Part Number Description Qty.
D379, D398, D399, G379, G398 and G399 Engines - Hydrody-
namic Seals - SMHS8301 (Continued)
6 -- 6V-7834 Bolt 2
1
Includes 089-7989 Bolt
2
Use stud instead of damper bolt
3
3196 Rear Gear Train Parts: FT2712 (Qty 3) and FT2711 Bolts (Qty 2)
4
FT2323, made from 5P-7297
Crankshaft Seal and Wear Sleeve Installation Tools (Silicone and Hydrodynamic): Non-Current Engines
NON-CURRENT ENGINES
Item Location Part Number Description Qty.
D342 and 5.75 in Bore Engines - Silicon Seals - SMHS6959-01
2 Front 5P-6543 Installer --
4 Front 5P-3036 Ring --
4 Front 5P-6545 Ring --
6 Front 5S-8096 Bolt --
-- Front 5P-3037 Plate --
D334, 1674 and 4.75 in Bore Engines - Silicon Seals -
SMHS6959-01
1
1 Front 9S-8876 Locator --
4 Front 9S-8537 Ring
2
--
4 Front 9S-8545 Ring
3
--
5 Front and
Rear
9S-8858 Nut Assembly --
6 Front 9S-8889 Bolt 2
NON-CURRENT ENGINES
Item Location Part Number Description Qty.
D334, 1674 and 4.75 in Bore Engines - Silicon Seals -
SMHS6959-01
4
5 Front and
Rear
9S-8858 Nut Assembly --
-- Rear 9S-8864 Plate --
6 Rear 8S-4950 Cap ( 9/16 in - 18
thd)
2
D336, 1676 and 4.5 in Bore Engines - Silicon Seals -
SMHS6959-01
1 Front 9S-8876 Locator --
5 Front and
Rear
9S-8858 Nut Assembly --
6 Rear 9S-8892 Bolt --
6 Front 9S-8889 Bolt 2
-- Rear 9S-8864 Plate --
1
1674 Bore Engine: 92B322-Up, 93B292-Up, 94B675-Up or prior engines reworked with discontinued 9S-0124 or 1N-5466 Crankshaft Assemblies
2
Not used on D334 Marine Engines
3
Not used on D334 Industrial or 1674 Engines
4
1674 Bore Engine: 92B1-92B331, 93B1-93B291, 94B1-94B674 with discontinued 4S-5349 and discontinued 7L-5188 Crankshaft Assemblies
193-0233 PTO Oil Seal Installer
Model: 3408 and 3412 Engines
Warranty: Six Months
• Tool must be used to install the 160-8181 PTO Shaft Seal (Seal is included in the
178-2973 Seal Kit)
• Used with nut and washer of PTO yoke to push seal into position
• Decreasesinstallationtime(usespositivestoptoaccuratelysetdepthofseal)
• Made from hardened steel for added durability
Part Number Description
193-0233 PTO Oil Seal Installer
