Caterpillar Engine Tools Cat Overhaul 3512 Page 365

Operation and Maintenance Manual
2599864
2599897
2599924
3-365
Engine Tools
Engine Lifting and Positioning
180-2877 Adapter Group (Continued)
Model: MY2000 C-15 and C-16 Engines and 3406E Engines
Warranty: Six Months
Item Part Number Description
1 180-2876 Plate(Notserviced)
2 2J-3506 Nut
3 5P-8248 Hard Washer
Item Part Number Description
4 180-2875 Spacer Assembly (Not
serviced)
5 205-9315 Special Stud (long)
6 205-9314 Special Stud (short)
-- 180-2877 Adapter Group

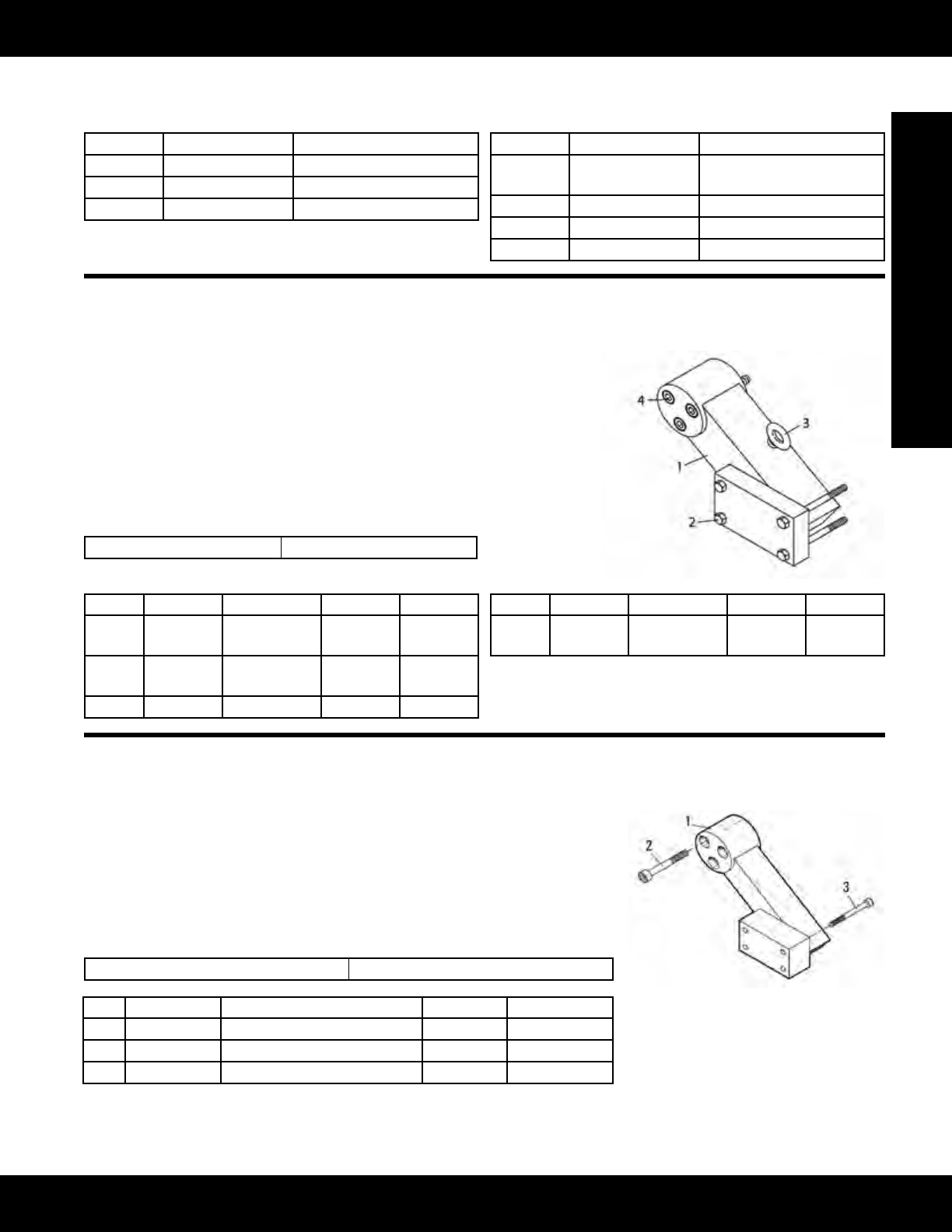

179-9561 Mounting Bracket Group
Model: 950F Wheel Loader
Warranty: Six Months
• Used to mount transmission on 1U-5750 Engine Repair
Stand
• Used with three 8L-3745 Socket Head Cap Screws to
mount bracket to engine repair stand
• Used with four 1D-4622 Bolts to mount transmission to
bracket
• Eyebolt allows bracket to be lifted in place with a hoist
• Providessafehandlingoftransmissionduringdisassem-
bly, maintenance, and assembly
• Allows 360 degree rotation for easy access and repair
Engine repair stand capacity 2721.6 kg (6000 lb)
Item Part No. Description Thread Length
1 179-9561 Mounting
Bracket Group
-- --
2 1D-4622 Bolt 3/4 - 10 203 mm (8
in)
3 3L-9168 Eyebolt -- --
Item Part No. Description Thread Length
4 8L-3745 Socket Head
Cap Screw
1 - 8 127 mm (5
in)
179-9562 Mount Bracket Assembly
Model: 924 Wheel Loader
Warranty: Six Months
• Used to mount transmission on 1U-5750 Engine Repair Stand
• Used with three 8L-3745 Socket Head Cap Screws to mount bracket to engine
repair stand
• Used with four 8C-3413 Socket Head Cap Screws to mount transmission to
bracket
• Providessafehandlingoftransmissionduringdisassembly,maintenance,and
assembly
• Allows 360 degree rotation for easy access and repair
Engine repair stand capacity 2721.6 kg (6000 lb)
Item Part Number Description Thread Length
1 179-9562 Mount Bracket Assembly -- --
2 8L-3745 Socket Head Cap Screw 1 - 8 127 mm (5 in)
3 8C-3413 Socket Head Cap Screw M12 x 1.75 120 mm (4.7 in)
