3-229

Engine Tools

Fuel System Test Tools

4C-6907 Governor Drive Group (Continued)

4C-8740 Air Supply and Test Group

Model:3500and3600FamilyEngineswithWoodward3161Governors

Warranty: Six Months

Item Part Number Description Quantity

-- 4C-6907 GovernorDriveGroup --

4C-6907 Governor Drive Group - Serviced

1.0 9F-2247 Pipe Plug 4

2.0 3P-0647 Seal 4

3.0 0S-1621 Bolt 2

4.0 0L-2070 Bolt 4

5.0 5M-2894 Washer 4

6.0 1D-4588 Bolt 2

7.0 1L-0509 Socket Head Cap Screw (3/8-16) 4

8.0 6V-6101 Plate Assembly

9.0 1A-7669 Bolt 2

10.0 6V-6103 Screw Assembly --

Required but not included

-- 4L-7124 Bolt - Hex Socket Head

-- 6V-6099 CamshaftDriveShieldAssembly

Some later 6V-6101 Plate Assemblies do not include shield.

Partof1P-0520DriverGroup

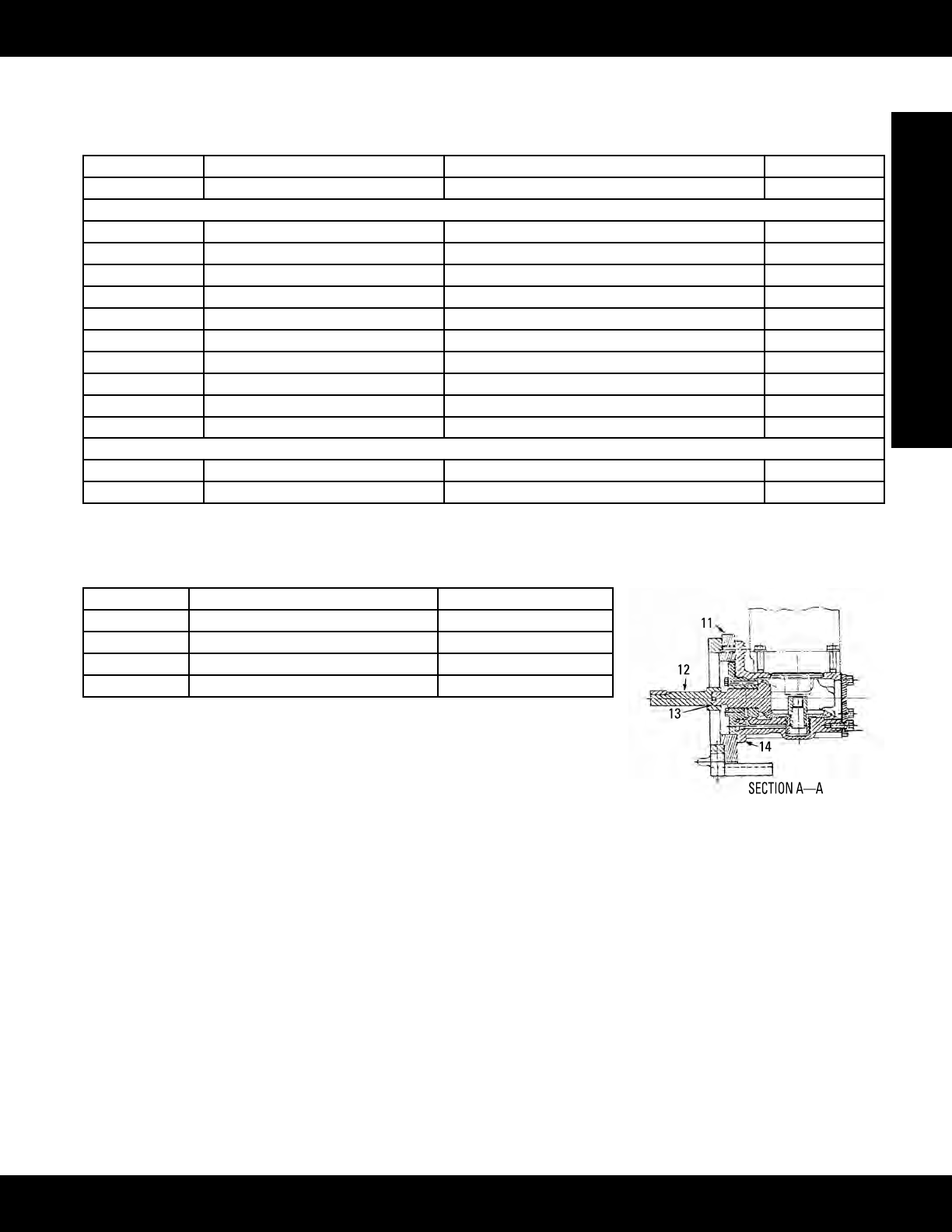

Section A-A

Item Part Number Description

11 4C-6906 Adapter

12 4C-6905 DriveShaftAssembly

13 4C-6904 Pinion

14 4C-6903 Housing Assembly
