Engine Tools

Fuel System Test Tools

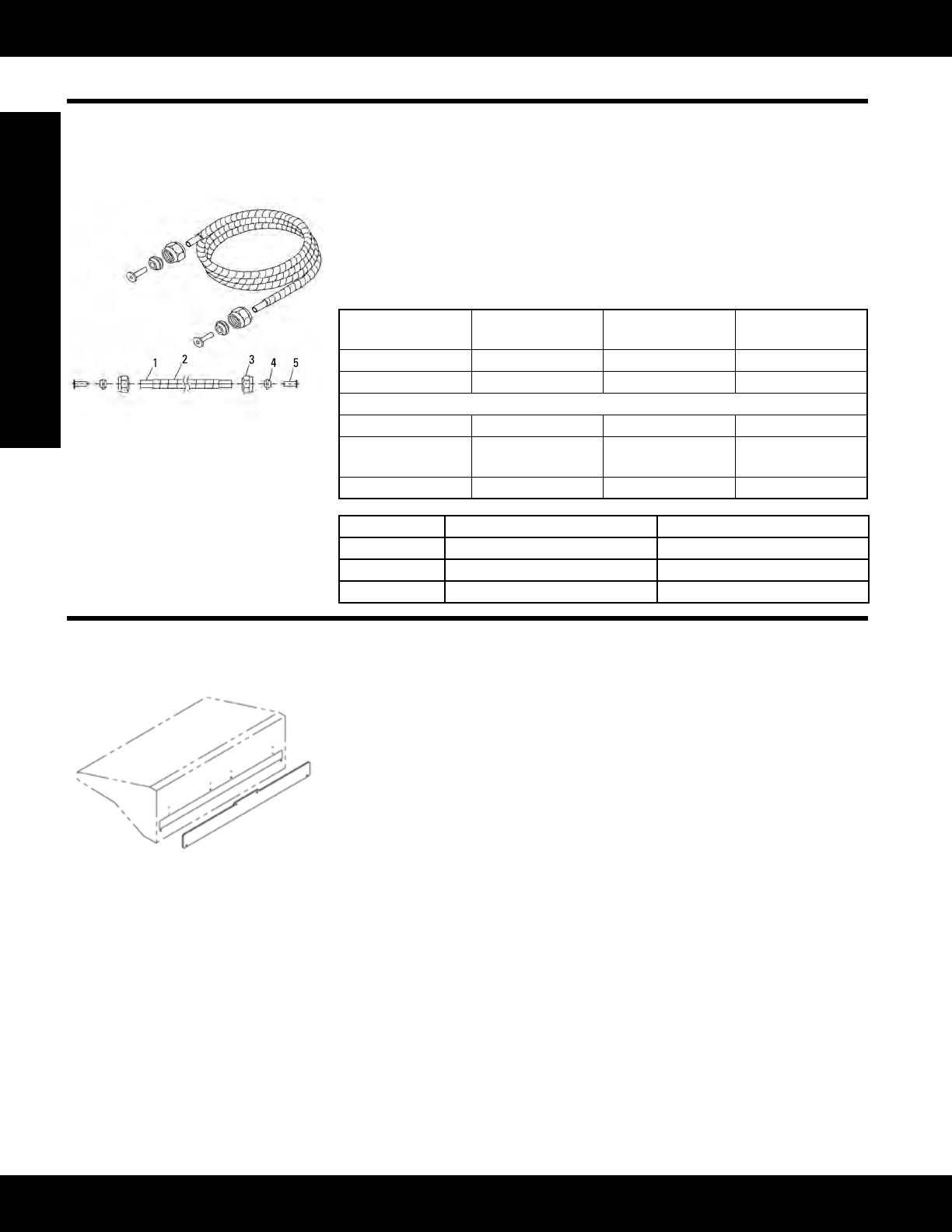

FT2642 Nozzle Block to Filter Block Tubing

FT2643 Filter Block to Metering Unit Tubing

Model: AVM 12C Fuel Injection Test Bench

Warranty: None

• Providesmoredurableoutertubingwrapforearlytestbenches

• Used with discontinued 132-9753 AVM 20-12C Fuel Injection Test Bench, discon-

tinued 139-1437 AVM 20-12C Fuel Injection Test Bench, Bench S/N 0001/0023

• Tubing must be cut to identical lengths for metering accuracy

• Both FT2642 and FT2643 can be made from either 9U-7707 [310 cm (122 in)] long

or 9U-7702 [3353 cm (110 ft)] long

Part Number Tubing Length Spirowrap Length

(Installed)

Spirowrap Free

Length

FT2642 305 mm (12.0 in) 280 mm (11.0 in) 440 mm (17.3 in)

FT2643 270 mm (10.6 in) 245 mm (9.6 in) 360 mm (14.2 in)

Item Description

1 Flexible Tubing (1

1/4 in TFE-White)

3 Nut (use existing)

Item Part Number Description

2 5P-6039 Spirowrap, 6 mm (0.24 in)

4 9U-7704 Ferrule, 6.35 mm (0.25 in)

5 7K-8332 Insert

FT2620 Access Cover, AVM

Model: Hartridge AVM 20-12C Fuel Injection Test Bench (Serial Number 1 thru 18)

Warranty: None

• Drawingprovidesdimensionstocutaccessholeandfabricatecoverfortip

shield access
