CAT 315 Part Manual Page 1021

Part Manual

Page of 1181

/ 1181

OPERATOR STATION

259-7194 LINES GP-AIR CONDITIONER (contd. ) i02910647

NOTE

REF

GRAPHIC

REF PART NUM BER QTY

PART NAM E

123456(PRODUCT LEVEL)

SEE

PAGE

M381,2 8T-4137 14 BOLT (M10X1.5X2

0-MM)

M39 2 8T-4191 2 BOLT (M10X1.5X16-MM)

M40 2 8T-4200 2 BOLT (M8X1.25X16-MM)

41 1,2 8T-4224 3 WASHER-HARD (8.8

X16X2-MM THK)

42 2 293-1277 1 BRACKET AS

43 2 293-1230 1 SUPPORT AS

E44 2 225-5714 GUARD (35-CM)

45 2 173-8073 1 SPACER (11X25X20-MM THK)

M46 2 8T-4196 1 BOLT (M10X1.5X35-MM)

47 1,2 305-0442 2 BAND-MARKER (HR)

48 2 305-0441 2 BAND-MARKER (HS)

E49 2 225-5707 GUARD (44-CM)

50 1 115-8645 1 GUARD

E-ORDER BY THE CENTIMETER

M-METRIC PART

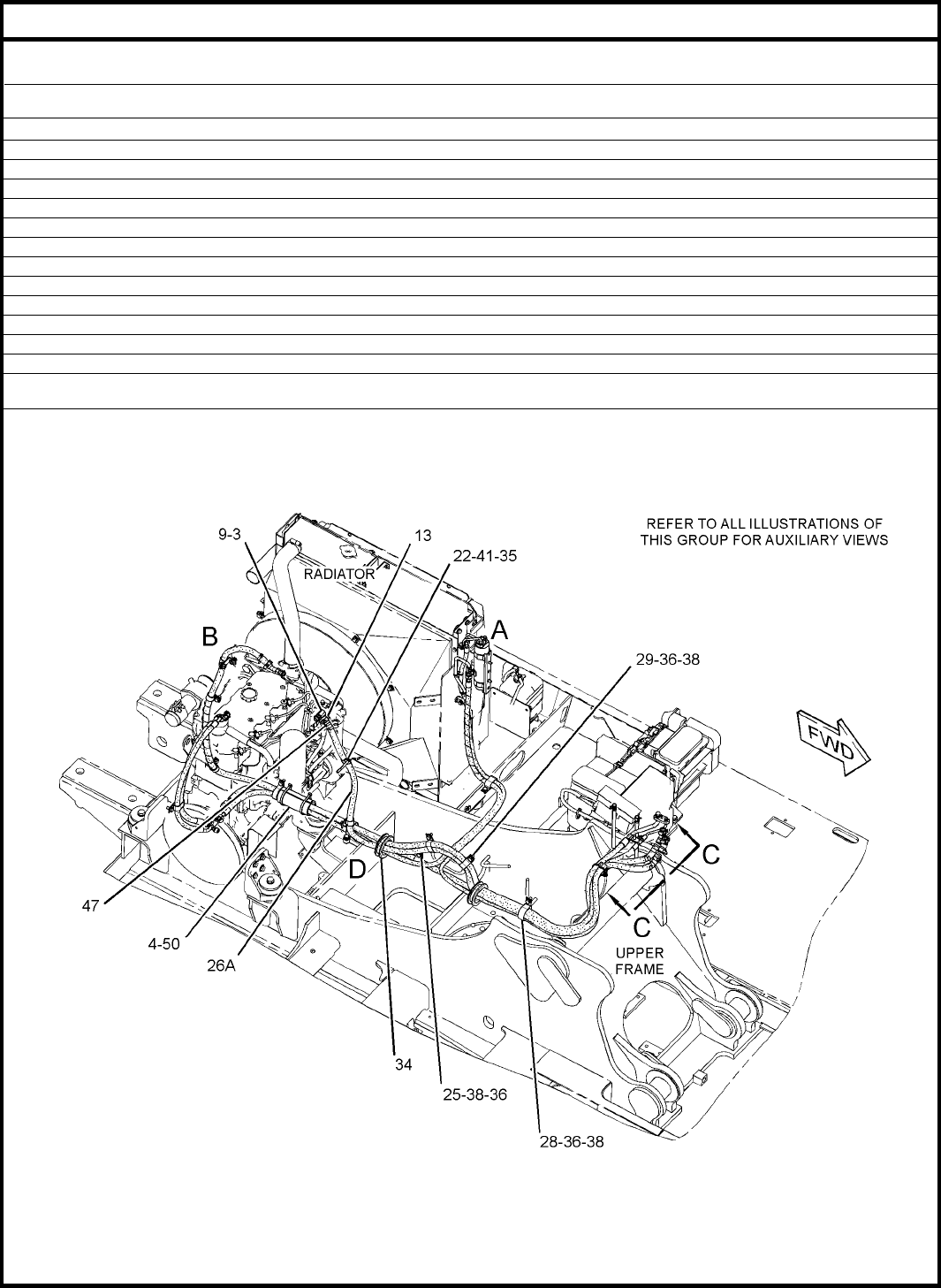

GRAPHIC #1 g01523901

SEBP4861-02

2of3 OPER ATOR STATION 991
