CAT 315 Part Manual Page 122

Part Manual
FUEL SYSTEM

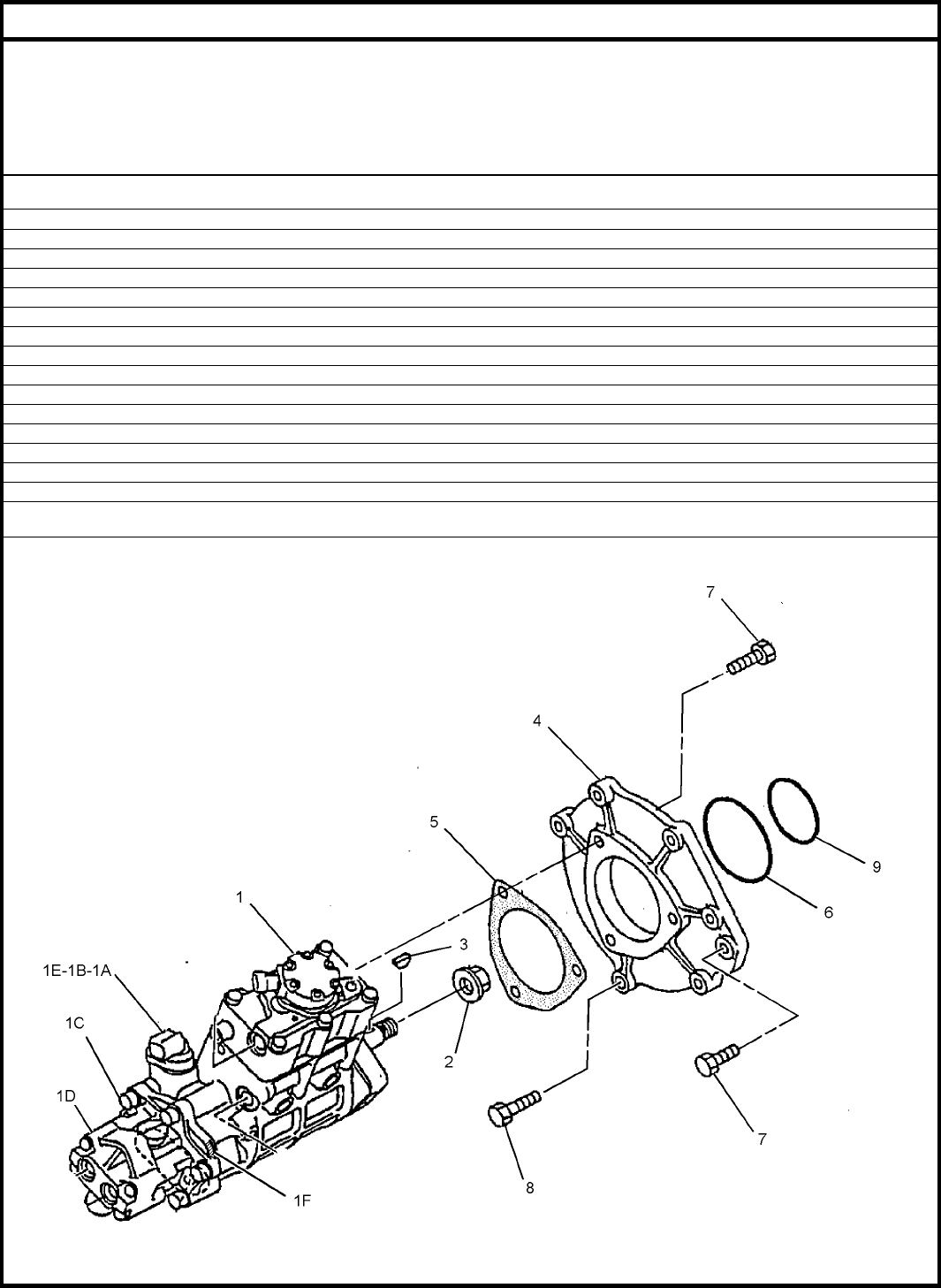

305-4680 PUMP &
MTG GP-FUEL TRANSFE R
S/N: JKH1 -UP
PART OF 272-481
7 ENGINE AR
ALSO AN ATTACHME
NT
SMCS-1256 i02879720
NOTE
REF
NO
GRAPHIC
REF PART NUM BER QTY
PART NAM E
123456(PRODUCT LEVEL
)
SEE
PAGE
R1 1 295-9127 1 PUMP GP-FUEL INJECTION (INCLUDES TRANSFER PUMP)
1A 1 238-0120 1 SENSOR GP-SPEED (FUEL PUMP)
1B 1 117-1385 1 SEAL-O-RING
M1C 1 5A-3604 5 BOLT-SOCKET HEAD (M8X1.25X25-MM)
1D 1 292-3751 1 PUMP GP-FUEL TRANSFER
M1E 1 8T-4200 1 BOLT (M8X1.25X1
6-MM)
1F 1 247-6019 1 SEAL
21 294-1834 1 NUT
31 294-1836 1 KEY-WOODRUFF
41 294-1839 1 FLANGE
51 294-1841 1 GASKET
61 294-1842 1 SEAL-O-RING
71 095-8799 4 BOLT (M8X1.25X30.5-MM)
81 294-1843 1 BOLT (M10X1.5X47-MM)
91 294-1846 1 SEAL-O-RING
M-METRIC PART
R-REMFG PART MAY BE AVAILABLE
GRAPHIC #1 <END> g01433257
92 FUEL SYSTEM 1of1 SEBP 4861-02
