CAT 315 Part Manual Page 475

Part Manual

Page of 1181

/ 1181

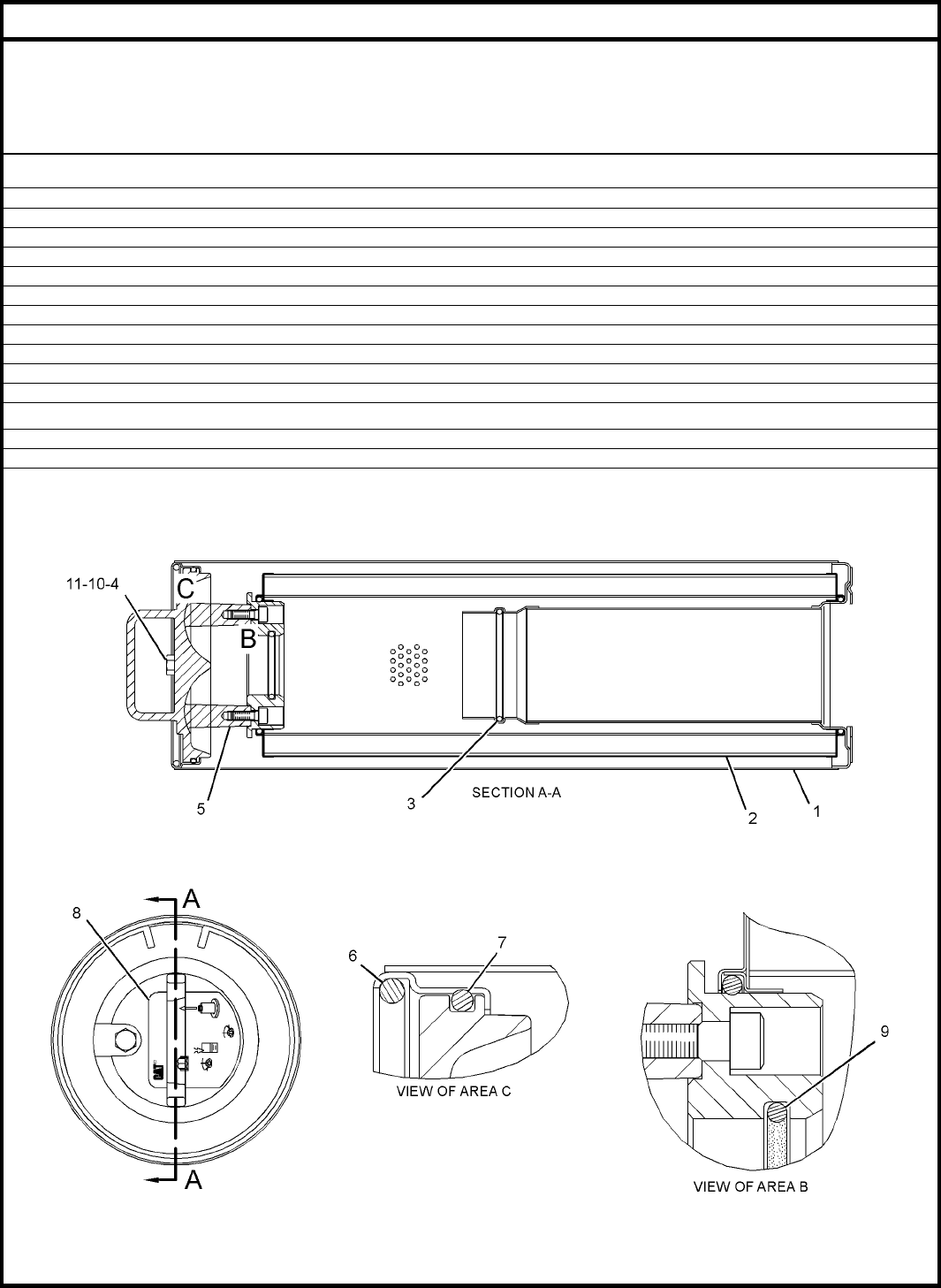

HYDRAULIC SYSTEM

266-7792 FILTE

R GP-O IL

–HYDRAULI C, MAIN RETURN

S/N: CJN1 -UP

PART OF 259-086

9 FILTER GP-OIL

SMCS-3004, 4295, 431F, 5068, 5091, 5092 i02855379

NOTE

REF

GRAPHIC

REF PART NUM BER QTY

PART NAM E

123456(PRODUCT LEVEL

)

SEE

PAGE

11 266-7797 1 SHELL AS

21 266-7796 1 FILTER ELEMENT AS-OIL (HYDRAULIC)

J3 1 8F-8882 1 SEAL-O-RING

J4 1 8C-3095 1 SEAL-O-RING

51 295-9573 1 HANDLE AS

61 266-7793 1 RING-RETAINING

J7 1 5F-3144 1 SEAL-O-RING

81 295-9618 1 FILM-INSTRUCTION (OIL FILTER REMOVAL, HYD TANK)

J9 1 095-1537 1 SEAL-O-RING

10 1 295-9617 1PLUG

J11 1 4J-7533 1 SEAL-O-RING

AVAILABLE REPAIR KIT(S):

J 295-9619 1 KIT-SERVICE (OIL

FILTER)

J-KIT MARKED J SERVICES PART(S) MARKED J

GRAPHIC #1 <END> g01419534

SEBP4861-02

1of1 HYDRAULIC SYSTEM 445
