CAT 315 Part Manual Page 262

Part Manual
ELECTRICAL AND STARTING SYSTEM
275-6881 WIRIN
G GP-C OMMU NICATION
–PRODUCT LINK 121SR
S/N: CJN1 -UP
PART OF 301-258
6 INSTALLATION AR-COMMUNICATION
AN ATTACHMENT
SMCS-1408 i02765577
NOTE
REF
NO
GRAPHIC
REF PART NUM BER QTY
PART NAM E
123456(PRODUCT LEVEL
)
SEE
PAGE
11 4I-7889 1 SPACER (11X25X45-MM THK)
21 7K-1181 5 STRAP-CABLE
31 9X-3495 1 CLIP AS
1 8C-3334 2 RIVET-TUBULAR
41 116-0118 2 CLIP
51 259-4940 1 HARNESS AS-WIRI
NG (SERVICE CONNECTOR)
1 243-4508 1 RECEPTACLE AS-CONNECTOR (6-PIN)
61 275-7047 1 HARNESS AS-CONTROL (SERVICE CONNECTOR)
1 155-2255 1 KIT-CONNECTING P
LUG (12-PIN)
(INCLUDES PLUG AS, WEDGE & INTERFACE SEAL)
1 230-5010 1 PLUG AS-CONNECTOR (6-PIN)
1 264-7032 1 SEAL-CONNECTOR
1 243-4508 1 RECEPTACLE AS-CONNECTOR (6-PIN)
71 091-9035 1 SPACER (11X25X20-MM THK)
81 8T-4121 1 WASHER-HARD (11X
21X2.5-MM THK)
M9 1 8T-4185 1 BOLT (M10X1.5X50-MM)
M10 1 8T-5005 1 BOLT (M10X1.5X70-MM)
M-METRIC PART

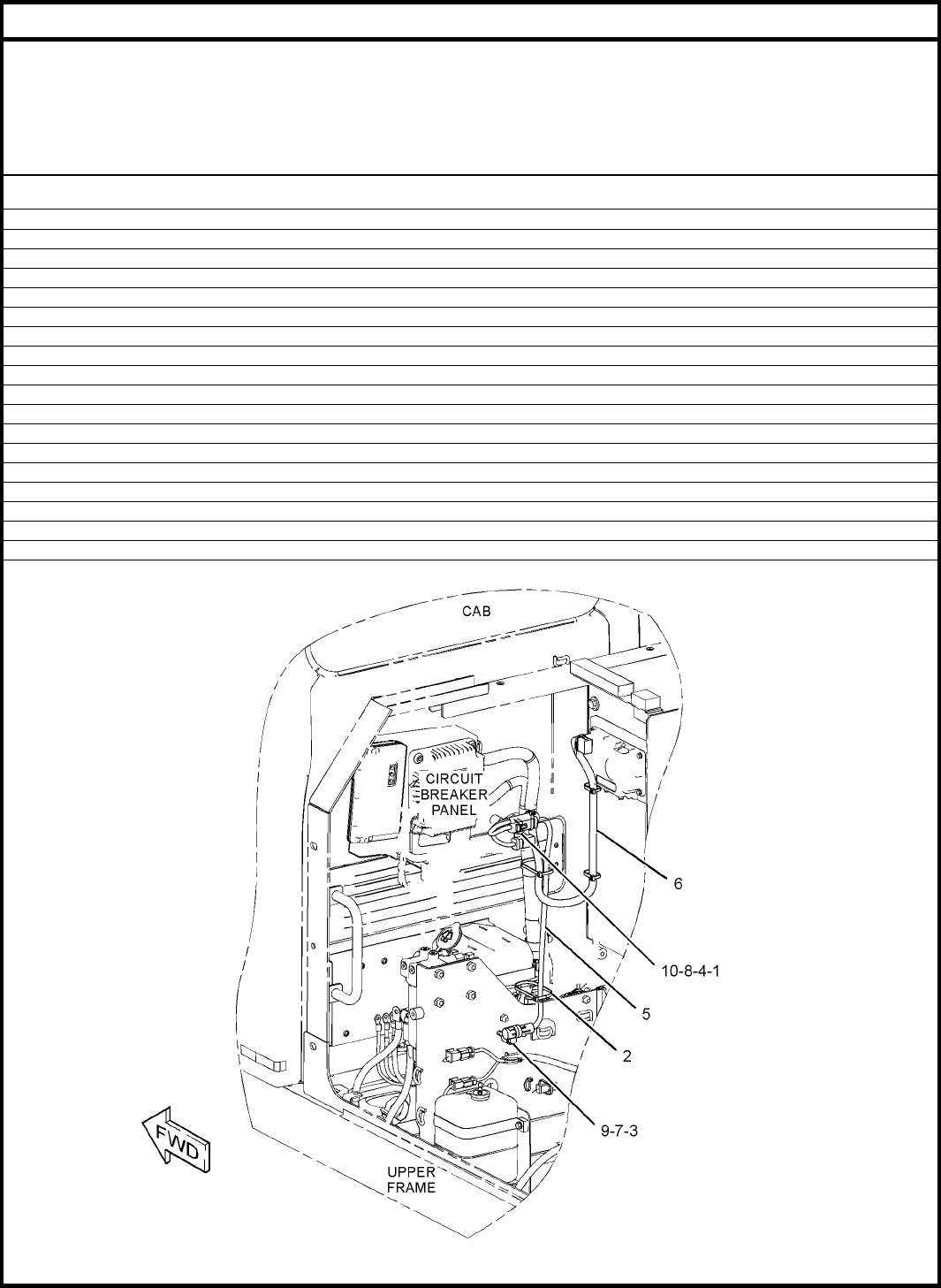

GRAPHIC #1 <END> g01384949
232 ELECTRIC AL AND S TARTING SY STEM 1of1 SEBP 4861-02
