FRAME AND BODY

260-2458 FRAME

GP-UPPER

S/N: CJN1 -UP

PART OF 260-696

0 CHASSIS AR

SMCS-7051 i02910650

NOTE

REF

GRAPHIC

REF PART NUM BER QTY

PART NAM E

123456(PRODUCT LEVEL

)

SEE

PAGE

B1 1 308-8776 2 SHIM (1-MM THK)

B2 1 093-0086 4 SHIM (1-MM THK)

B3 1 308-8777 1 SHIM (2-MM THK)

B4 1 093-0118 2 SHIM (2-MM THK)

51 093-0349 3 WASHER (22X60X6-MM THK)

61 107-9739 2 PIN AS

B7 1 308-8775 1 SHIM (0.5-MM THK)

81 118-5982 2 SPACER (73X105X14-MM THK)

B9 1 133-2424 2 SHIM (0.5-MM THK

)

10 1 212-2838 2 SHIM (2-MM THK)

J11 1 245-7900 1 CAP

J12 1 245-7901 1 CAP

13 1 260-2459 1 FRAME AS-UPPER

14 1 267-0061 1 PIN AS

M15 1 8T-4780 3 BOLT (M20X2.5X30-

MM)

B-USE AS REQUIRED

J-REQUIRED ON MACHINE WITHOUT LOWER WIPER

M-METRIC PART

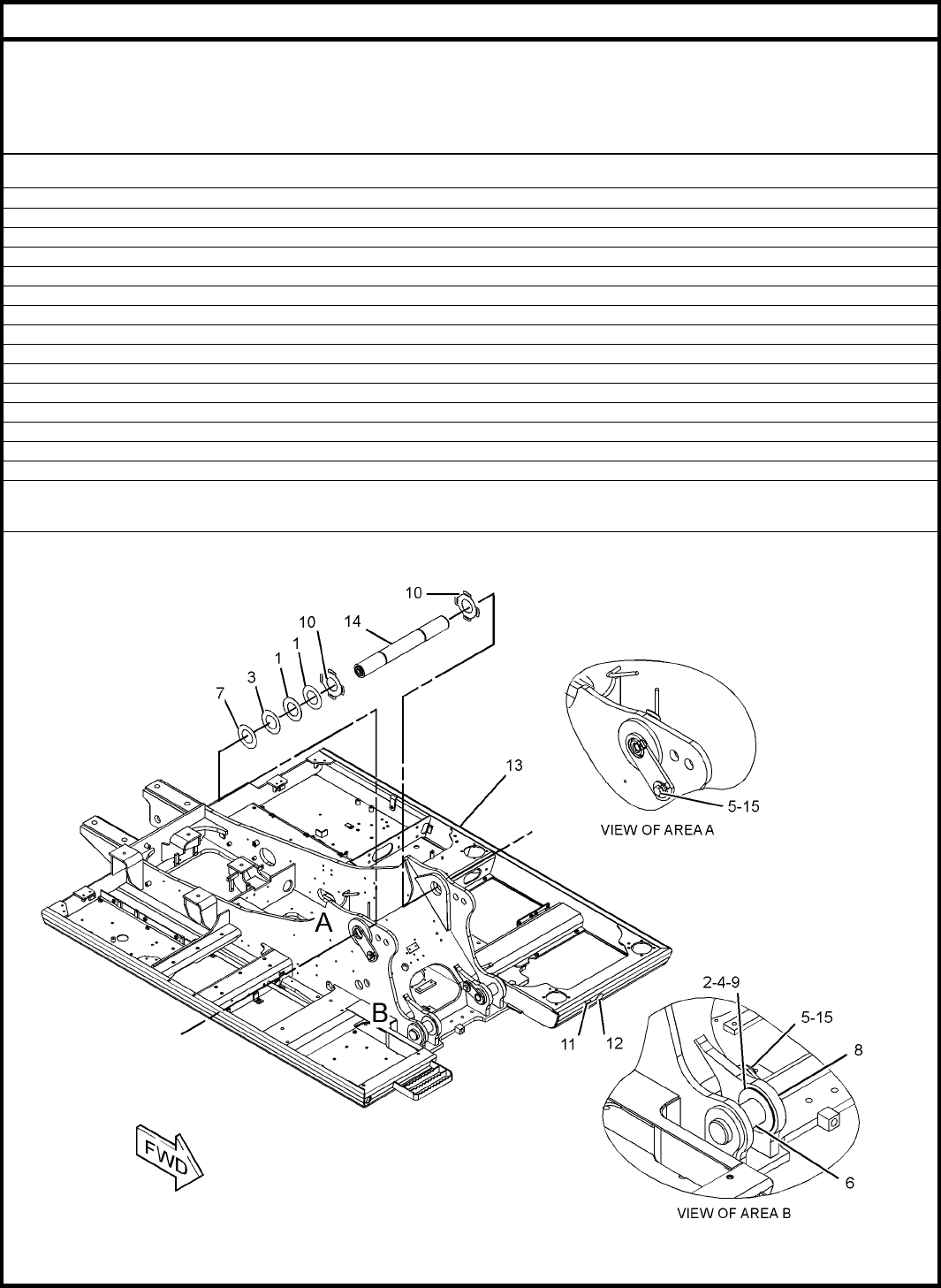

GRAPHIC #1 <END> g01317162

312 FRAME AND BODY 1of1 SEBP 4861-02
