CAT 315 Part Manual Page 802

Part Manual

Page of 1181

/ 1181

IMPLEMENTS

264-1600 STICK

GP-HOE

S/N: CJN1 -UP

2.6-M (8.5-FT)

PART OF 260-6982

STICK AR-HOE

AN ATTACHMENT

SMCS-6502 i02747932

NOTE

REF

GRAPHIC

REF PART NUM BER QTY

PART NAM E

123456(PRODUCT LEVEL

)

SEE

PAGE

11 3B-8489 3 FITTING-GREASE

21 4I-4811 1 PIN AS

31 093-0349 2 WASHER (22X60X

6-MM THK)

41 107-9852 1 PIN AS

51 118-5982 2 SPACER (73X105X14-MM THK)

61 166-1482 2 SHIM (2-MM THK)

71 166-1495 2 SEAL-LIP TYPE

81 235-7679 4 SEAL-LIP TYPE

91 264-1601 1 STICK & BEARING AS

9A 1 228-5614 2 BEARING-SLEEVE

9B 1 229-1096 2 BEARING-SLEEVE

9C 1 244-4277 2 BEARING-SLEEVE

10 1 8T-4123 2 WASHER (22X35X3.5-MM THK)

M11 1 8T-4780 2 BOLT (M20X2.5X30-MM)

M-METRIC PART

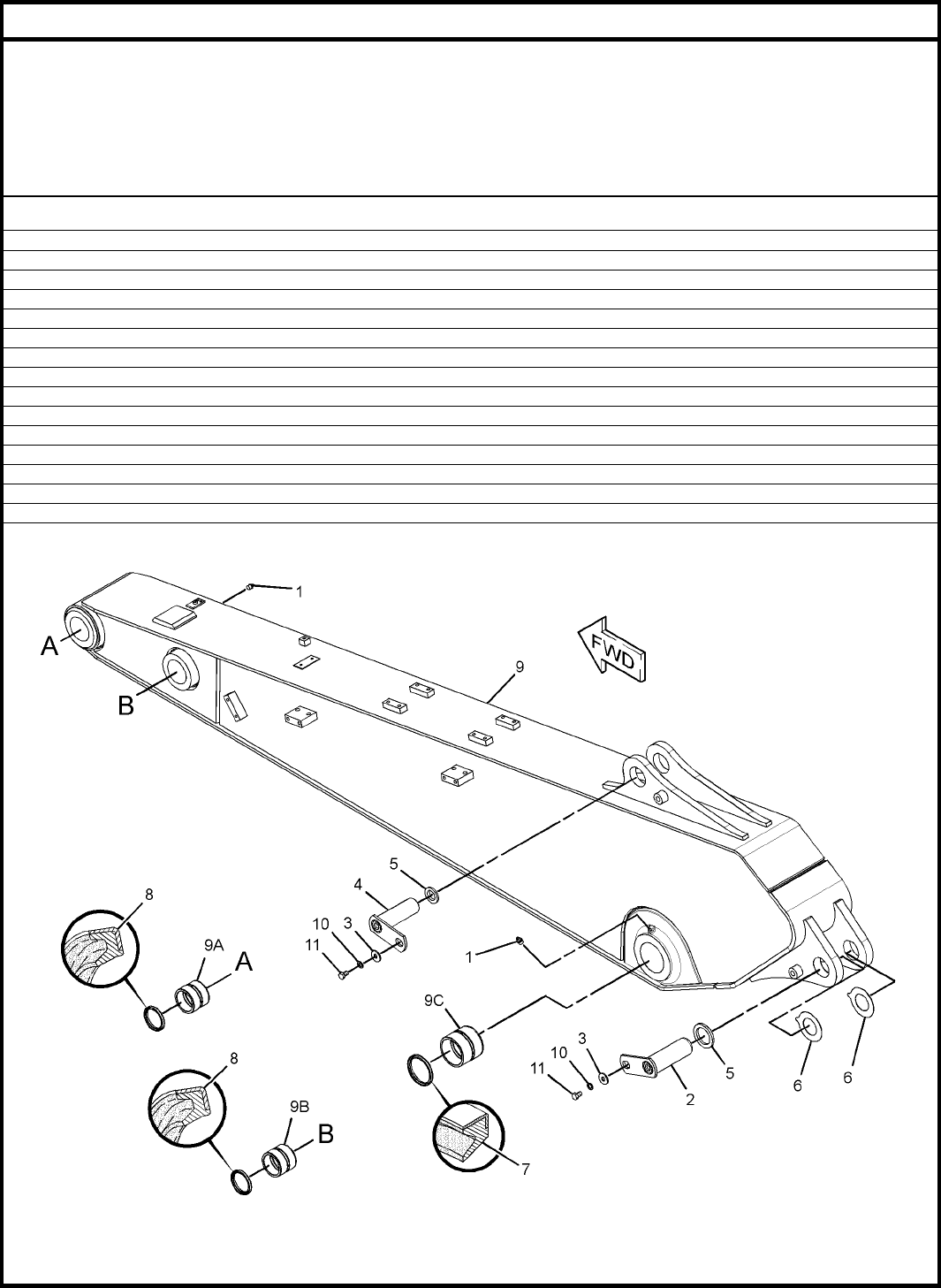

GRAPHIC #1 <END> g01379567

772 IMPLEMENT S 1of1 SEBP 4861-02
