CAT 315 Part Manual Page 920

Part Manual
OPERATOR STATION
259-7195 CONDE
NSER & M TG GP-REFRIGERANT
S/N: CJN1 -UP
PART OF 279-774
8 INSTALLATION AR-ENGINE
SMCS-1805 i02910648
NOTE
REF
NO
GRAPHIC
REF PART NUM BER QTY
PART NAM E
123456(PRODUCT LEVEL
)
SEE
PAGE
11 7Y-8561 1 BUMPER
21 193-2764 1 HANDLE AS
Y3 1 245-7749 1 CONDENSER GP-R
EFRIGERANT
891
41 305-0443 1 BRACKET AS
51 284-4507 1 BRACKET AS
61 284-4509 1 SUPPORT AS
1 099-7857 2 HINGE
71 193-2765 2 SUPPORT AS
81 5P-4116 4 WASHER-HARD (8.
8X20.5X2-MM THK)
91 8T-4121 7 WASHER-HARD (11X21X2.5-MM THK)
M10 1 8T-4133 1 NUT (M10X1.5-THD)
M11 1 8T-4136 2 BOLT (M10X1.5X25
-MM)
M12 1 8T-4137 4 BOLT (M10X1.5X20-MM)
M13 1 8T-4179 4 BOLT (M12X1.75X20-MM)
M14 1 8T-4189 4 BOLT (M8X1.25X20-
MM)
15 1 8T-4223 4 WASHER-HARD (13.5X25.5X3-MM THK)
M16 1 8T-4971 4 BOLT (M6X1X30-MM)
17 1 9X-8256 4 WASHER (6.6X12X2
-MM THK)
M-METRIC PART
Y-SEPARATE ILLUSTRATION

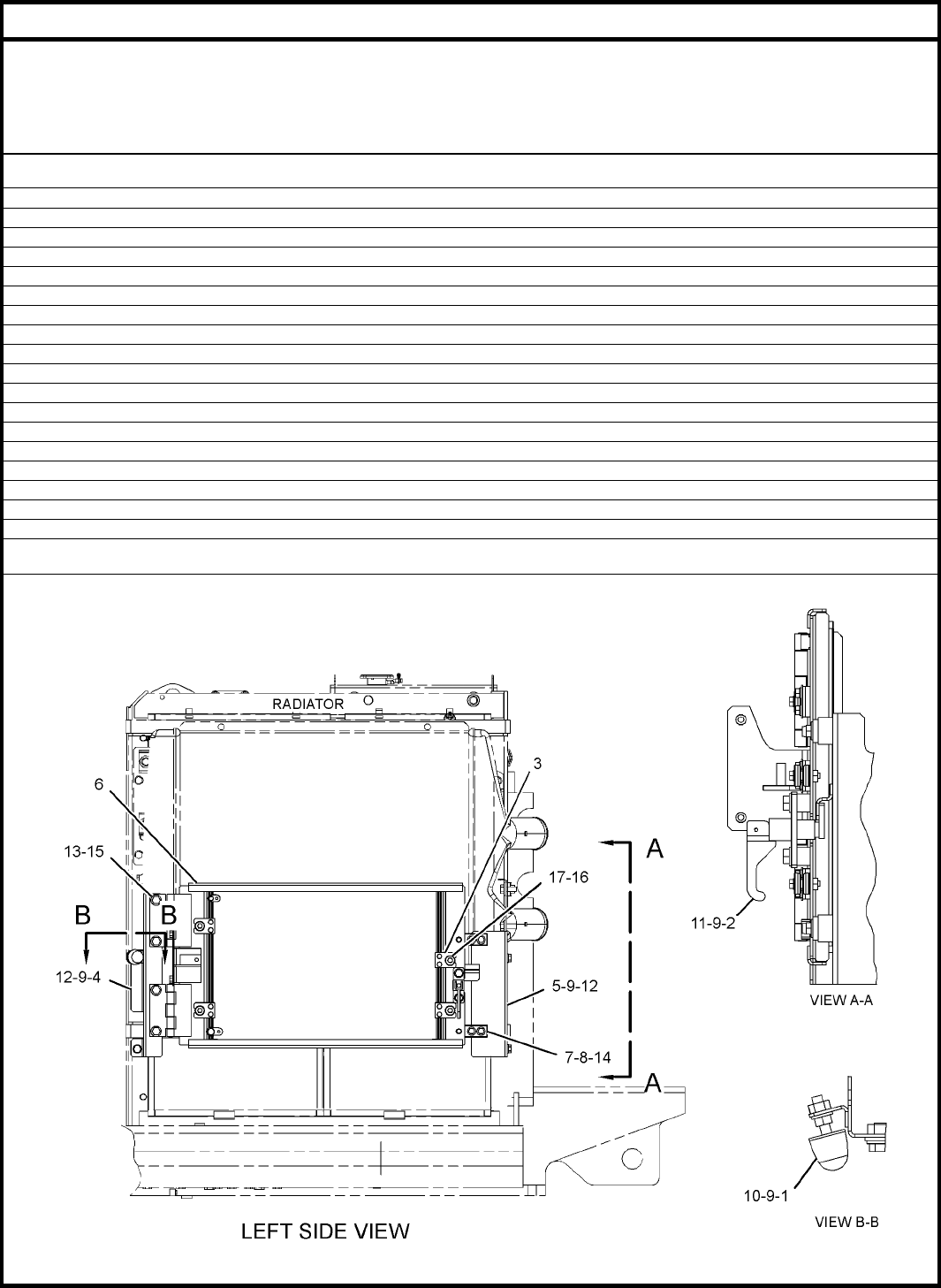

GRAPHIC #1 <END> g01304667
890 OPERATOR STATION 1of1 SEBP 4861-02
