CAT 315 Part Manual Page 487

Part Manual
HYDRAULIC SYSTEM
262-3237 LINES
GP-AUXILIARY HYDRAULIC
–HIGH PRESSURE
S/N: CJN1 -UP
3.1-M TO 3.2-M (
10.2-FT TO 10.5-FT) STICK
AN ATTACHMENT
SMCS-5057 i02855347
NOTE
REF
NO
GRAPHIC
REF PART NUM BER QTY
PART NAM E
123456(PRODUCT LEVEL
)
SEE
PAGE
I1 1 087-6643 1HOSEAS
M2 1 101-7403 4 BOLT-SOCKET HEAD (M10X1.5X80-MM)
I3 1 277-0917 1HOSEAS
Y4 1 282-5894 2 VALVE AS-MANUAL (AUXILIARY, SHUTOFF) 677
51 282-5895 2TUBEAS
61 282-5896 1TUBEAS
71 8T-4896 4 WASHER-HARD (10.2X18.5X2.5-MM THK)
81 1P-3703 4 SEAL-RECTANGULAR
91 6V-0400 4 FLANGE-HALF
10 1 6V-9746 1 SEAL-O-RING
11 1 7Y-3732 4CLIP
12 1 7Y-4868 4CLIP
M13 1 8T-4139 8 BOLT (M12X1.75X30-MM)
M14 1 8T-4184 8 BOLT (M12X1.75X45-MM)
M15 1 8T-4196 4 BOLT (M10X1.5X35
-MM)
16 1 8T-4223 16 WASHER-HARD (13.5X25.5X3-MM THK)
M17 1 8T-4956 4 BOLT (M12X1.75X35-MM)
I-REFER TO HYDRAULIC
INFORMATION SYSTEM
M-METRIC PART
Y-SEPARATE ILLUSTR
ATION

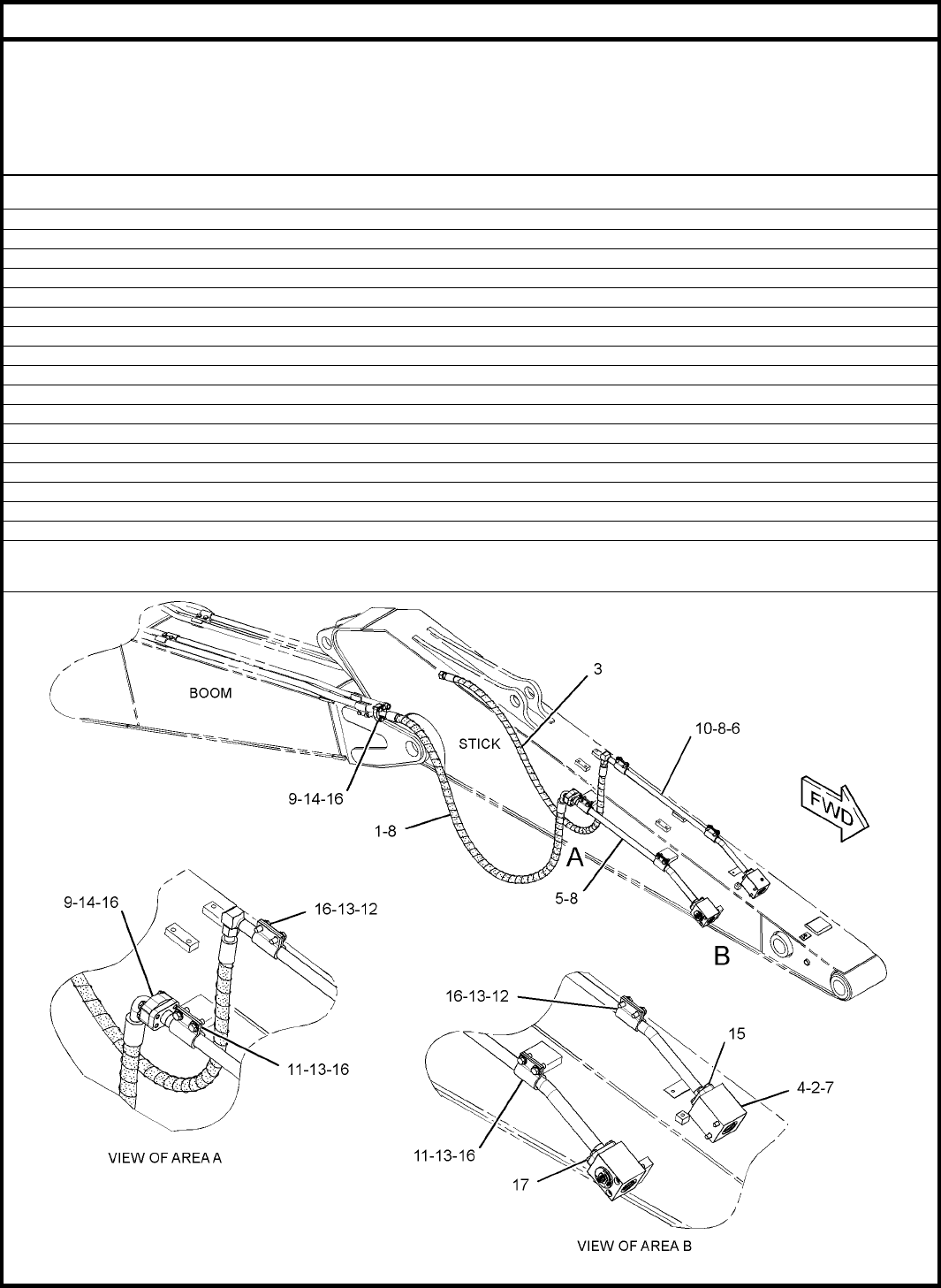

GRAPHIC #1 <END> g01324557
SEBP4861-02
1of1 HYDRAULIC SYSTEM 457
Previous page
Next page
