CAT 315 Part Manual Page 571

Part Manual
HYDRAULIC SYSTEM
275-1701 LINES
GP-FRONT
–SYSTEM 23, COMBINED FUNCTION
S/N: CJN1 -UP
PART OF 270-575
0 CONTROL AR-AUXILIARY
AN ATTACHMENT
SMCS-5057 i02598676
NOTE
REF
NO
GRAPHIC
REF PART NUM BER QTY
PART NAM E
123456(PRODUCT LEVEL
)
SEE
PAGE
11 221-8859 1 SENSOR AS-PRESSURE (WORK TOOL)
1 3E-3371 1 WEDGE-RECEPTACLE LOCK (3-PIN)
1 3K-0360 1 SEAL-O-RING
1 9X-3401 3 PIN-CONNECTOR (16-GA TO 18-GA)
–OR–
1 126-1767 3 PIN-CONNECTOR (
14-GA)
1 171-0596 1 RECEPTACLE AS
21 270-5672 1 VALVE GP-SOLENOID & RELIEF
(AUXILIARY, COMBINED FN, LH)
31 270-5757 1 VALVE GP-SOLENOI
D & RELIEF
(AUXILIARY, COMB
INED FN, RH)
41 272-4164 1 PLATE
51 148-8327 1 CONNECTOR AS
1 3D-2824 1 SEAL-O-RING
1 6V-8637 1 CONNECTOR
1 6V-9746 1 SEAL-O-RING
61 8T-4121 2 WASHER-HARD (11X
21X2.5-MM THK)
M7 1 8T-4137 2 BOLT (M10X1.5X20-MM)
M-METRIC PART

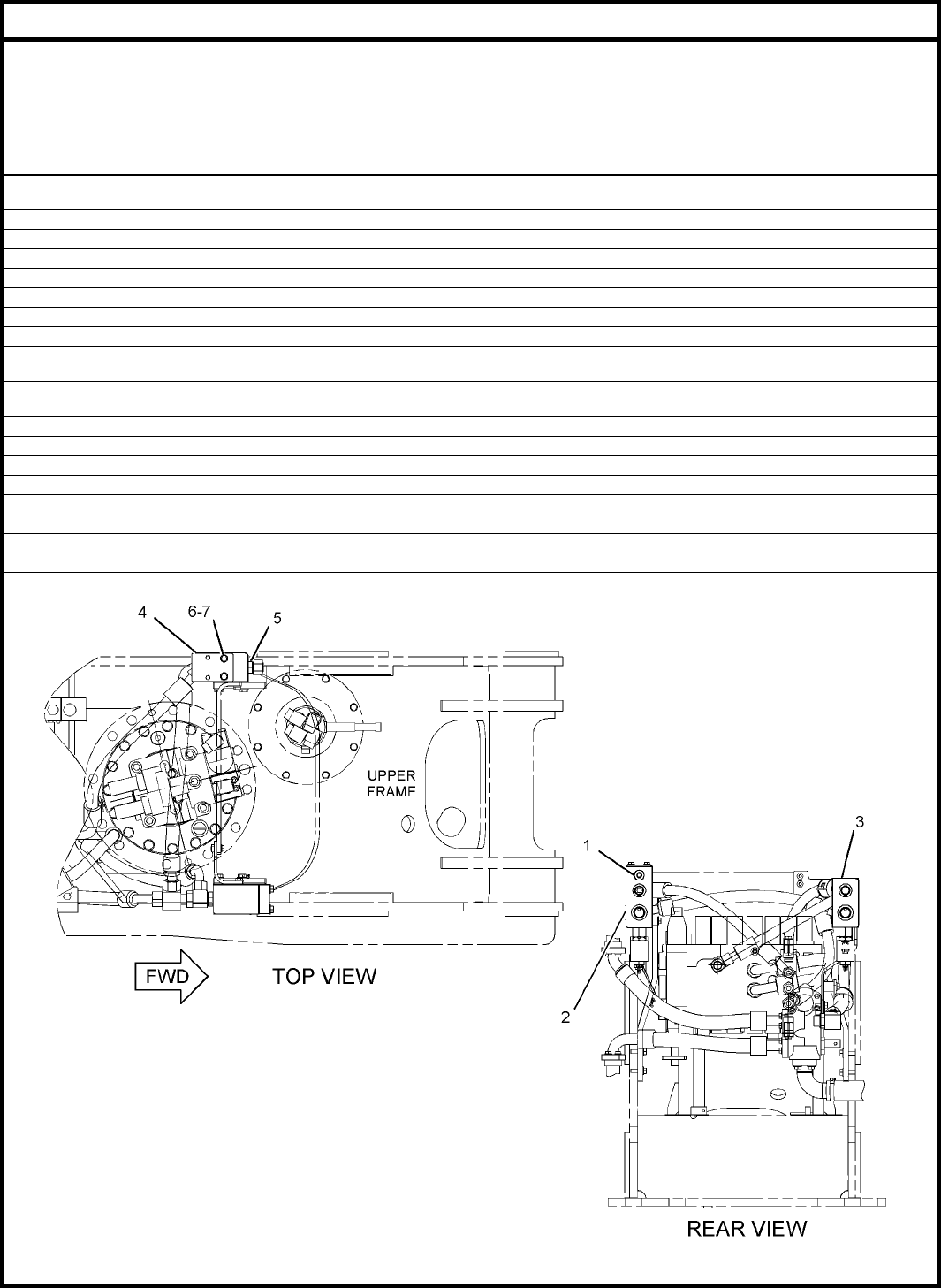

GRAPHIC #1 <END> g01310312
SEBP4861-02
1of1 HYDRAULIC SYSTEM 541
