CAT 315 Part Manual Page 943

Part Manual

Page of 1181

/ 1181

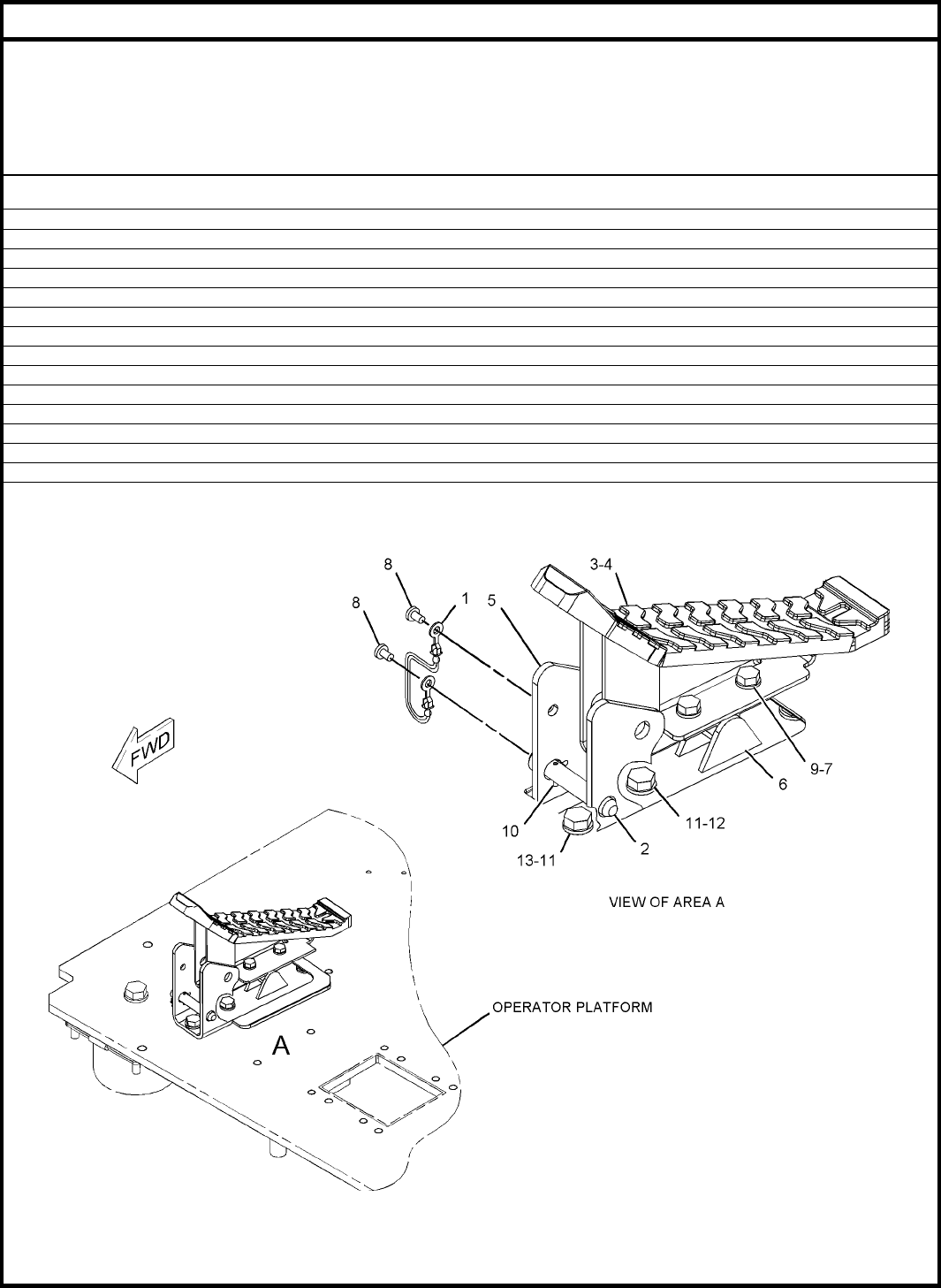

OPERATOR STATION

225-5730 CONTR

OL GP- HYDR AULIC PEDAL

S/N: CJN1 -UP

PART OF 259-719

6 PEDAL AR-THIRD

AN ATTACHMENT

SMCS-5059, 5063 i02214468

NOTE

REF

GRAPHIC

REF PART NUM BER QTY

PART NAM E

123456(PRODUCT LEVEL

)

SEE

PAGE

11 5I-7090 1 CHAIN AS

21 128-2173 1PIN

31 135-2274 1 PEDAL-RUBBER

41 164-0614 1 PEDAL AS

51 164-0617 1 SUPPORT AS

61 165-9523 1 VALVE GP-PILOT (

THIRD PEDAL, STRAIGHT TRAVEL)

71 8T-4224 2 WASHER-HARD (8.8X16X2-MM THK)

M8 1 095-0735 2 SCREW-MACHINE (M5X0.8X8-MM)

M9 1 7X-2536 2 BOLT (M8X1.25X14

-MM)

10 1 8T-0114 1 PIN-SPRING

11 1 8T-4121 3 WASHER-HARD (11X21X2.5-MM THK)

M12 1 8T-4136 2 BOLT (M10X1.5X25

-MM)

M13 1 8T-4191 1 BOLT (M10X1.5X16-MM)

M-METRIC PART

GRAPHIC #1 <END> g01130744

SEBP4861-02

1of1 OPER ATOR STATION 913
