ELECTRICAL AND STARTING SYSTEM

170-9294 LIGHT

ING G P-FL OOD

–CAB GUARD

S/N: CJN1 -UP

AN ATTACHMENT

SMCS-1434 i02259861

NOTE

REF

GRAPHIC

REF PART NUM BER QTY

PART NAM E

123456(PRODUCT LEVEL

)

SEE

PAGE

11 183-1035 2 LAMP GP-FLOOD

(EACH INCLUDES)

1 9X-3463 1 LAMP-HALOGEN (

24-VOLT, 65-WATT)

21 163-6795 2 STRAP-CABLE

M3 1 8T-4133 2 NUT (M10X1.5-THD)

41 8T-4121 4 WASHER-HARD (11

X21X2.5-MM THK)

M5 1 8T-4137 2 BOLT (M10X1.5X20-MM)

61 170-9295 2 HARNESS AS-LIGHTING (CAB FLOODLIGHTS, FRONT)

(EACH INCLUDES)

1 7Y-3962 2 TERMINAL (CONNECTOR)

1 7Y-3964 2 TUBE (CONNECTOR TERMINAL)

1 7Y-3963 2 TERMINAL (RECEPTA

CLE)

1 7Y-3965 2 TUBE (RECEPTACLE TERMINAL)

M-METRIC PART

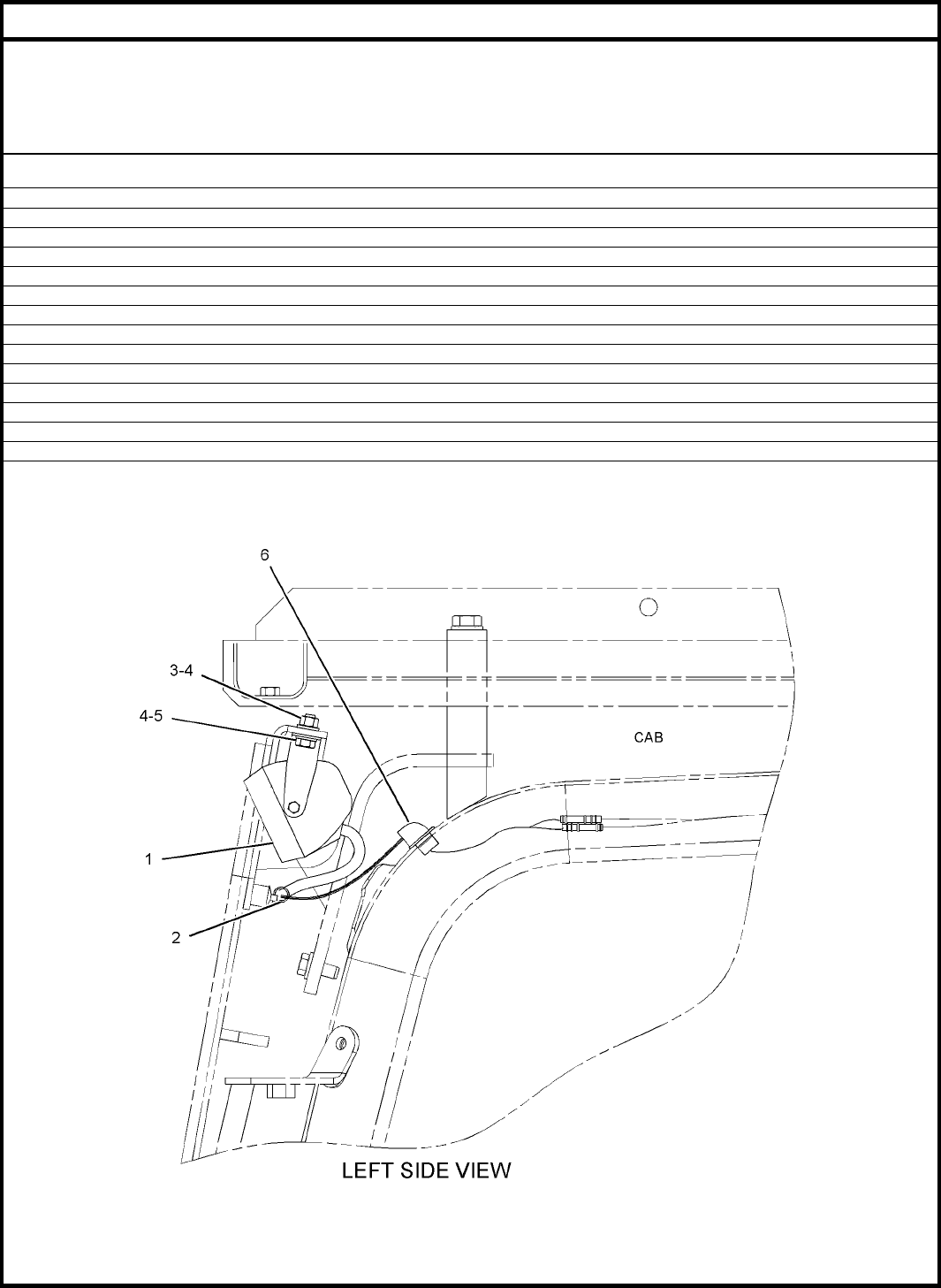

GRAPHIC #1 <END> g01134805

170 ELECTRIC AL AND S TARTING SY STEM 1of1 SEBP 4861-02
