GENERAL INFORMATION

1. MACHINE IDEN

TIFICATION

Caterpillar ma

chines are identiﬁed by Product

Identiﬁcation

Numbers (PIN). Some components

included in a m

achine may be identiﬁed by Serial

Numbers (S/N)

. Typical components that will be

serialized in

clude engines, transmissions, bulldozers,

and rippers.

The machine and engine are further

identiﬁed by

arrangement numbers and in some cases

modiﬁcation

numbers. These numbers are shown on the

product iden

tiﬁcation plate(s) and on the master plate in

the operator

’s compartme nt.

Caterpillar

dealers need all of these numbers to

determine a

ccurate parts identiﬁcation.

Effective First Quarter 2001 the Caterpillar Product

Identiﬁcation Number (PIN) changed from 8 to 17

characters. In an effort to provide uniform equipment

identiﬁcation, Caterpillar and other construction

equipment manufacturers are moving to comply with

the latest version of the product identiﬁcation numbering

standard. Non-road machine PINs are deﬁned by ISO

10261. The new PIN format will apply to all Caterpillar

machines and generator sets. The PIN plates and frame

marking will display the 17 character PIN. The new

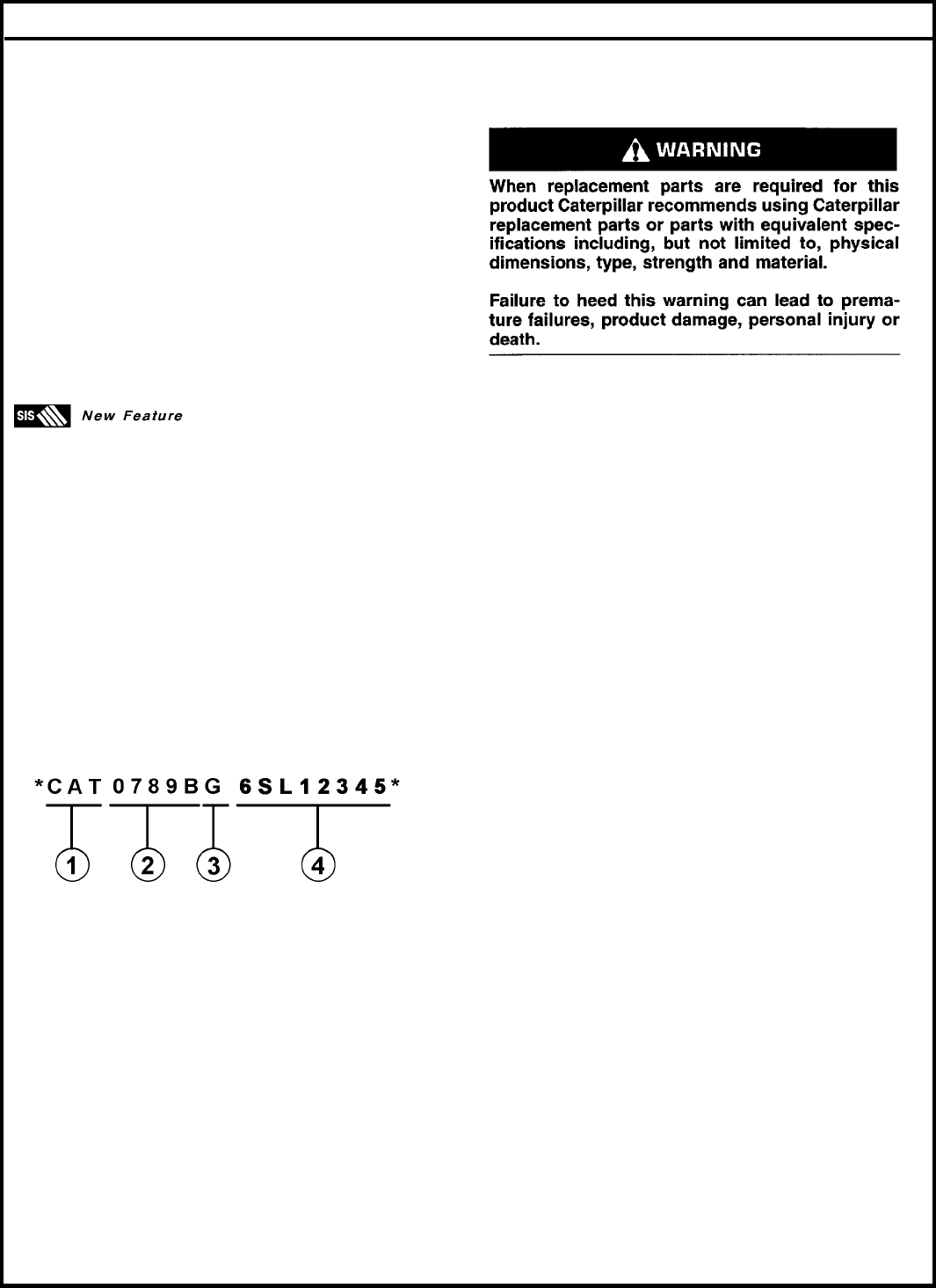

format will look like the following:

Where:

1. Caterpillar’s World Manufacturing Code (characters 1-

2. Machine Descriptor (characters 4-8)

3. Check Character (character 9)

4. Machine Indicator Section (MIS) or Product Sequence

Number (characters 10-17). These were previously

referred to as the Serial Number.

Machines and generator sets produced before First

Quarter 2001 will maintain their 8 character PIN format.

Components such as engines, transmissions, axles, etc.

and work tools will continue to use an 8 character Serial

Number (S/N).

2. ORDERING PAR

Quality Caterpillar replacement parts are available

from Caterpillar dealers throughout the world. Their

parts inventories are up to date and include all

parts normally required to protect your investment

in Caterpillar machines. Dealers may offer repair kits

or remanufactured parts to allow selection of the most

effective repair alternative for a particular situation. When

ordering parts, your order should specify the quantity,

part number, part name, and the serial number/product

identiﬁcation number of the machine for which the parts

are needed.

3. PARTS MANUAL ORGANIZATION

Product information in this manual is presented

as "information elements" that represent all of the

components for the speciﬁc model. Engine Arrangement

and Seat Group are examples of information elements.

The information elements are organized alphabetically

by part name and secondarily by part number within

each major section of the manual.

4. TABLE OF CONTENTS

A table of contents (TOC) is found at the beginning of the

manual. The TOC lists each section of the manual with

a complete list of all information elements organized as

they appear in the manual. Page numbers are provided

for quick reference to detailed parts identiﬁcation

illustrations and serviceable consist lists.

5. MAINTENANCE PARTS INDEX

The Maintenance Parts Index, located near the

beginning of the manual, references most frequently

used maintenance part numbers, providing description,

quantity, usage and page number. This information is

organized alphabetically by part description.

SEBP4861-02 GENERAL INFORMATION A5
